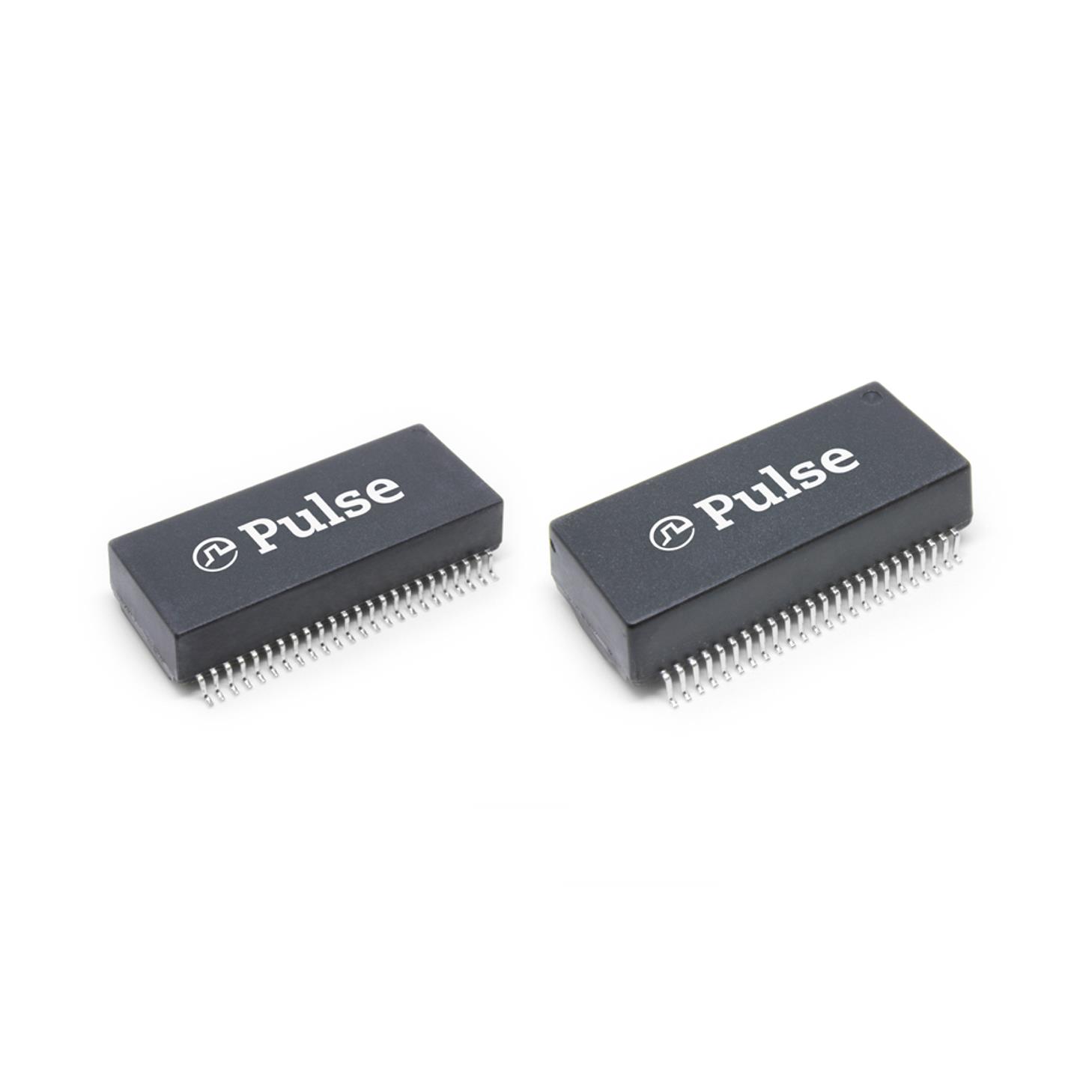

GS9015RM LF

$5.35

Description：MDL 1G DUAL PORT 4PAIR POE 90W
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR)

SKU:765e9903665e Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MDL 1G DUAL PORT 4PAIR POE 90W
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR)
Transformer Type：LAN 1000 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:1CT Transmitter, 1:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：1.291" L x 0.543" W (32.80mm x 13.80mm)
Height - Seated (Max)：0.287" (7.30mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

GS9015RM LF

Overview

The GS9015RM LF is a LAN 1000 Base-T pulse transformer manufactured by Pulse Electronics. It features a dual-port design with four pairs, supporting Power over Ethernet (PoE) applications up to 90W. The component includes a transmitter and receiver section, both configured with a 1:1CT ratio. It has an inductance of 350µH and utilizes a surface mount package.

Feature Summary

Supports 1000 Base-T LAN standards with integrated transmission and reception capabilities
Enables high-power PoE delivery up to 90W across four pairs
Designed for surface mount assembly with compact form factor

Applications

1000 Base-T network interface cards
Power over Ethernet (PoE) powered devices
Dual-port network switches

Procurement Notes

Verify the specific suffix 'LF' indicates lead-free compliance as per manufacturer specifications. Confirm the 90W PoE rating aligns with your power budget requirements. Ensure the surface mount footprint matches your PCB layout constraints before ordering.

Selection Notes

Select this component when a dual-port solution is required for Gigabit Ethernet applications. The 90W PoE capability makes it suitable for higher-power endpoints compared to standard 15.4W or 30W variants. Verify compatibility with 1:1CT transformer configurations in your circuit design.

Part Context

This part belongs to the Pulse Transformers product line, specifically designed for LAN connectivity. It serves as a critical isolation and impedance matching component in Ethernet physical layer circuits, ensuring signal integrity between the MAC and PHY.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official distributor databases for cross-reference information if alternative sourcing is required.
