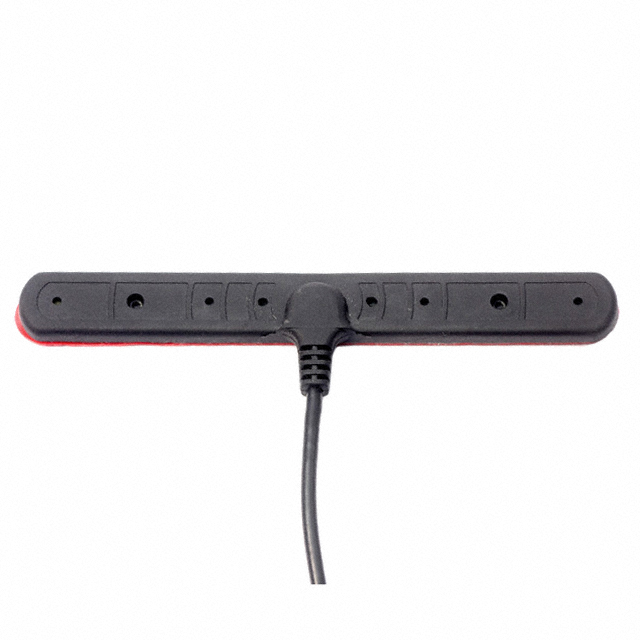

GSA.8822.A.301111

GSA.8822.A.301111 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 850MHZ/900MHZ FLAT BAR. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GSA.8822.A.301111

• Description：RF ANT 850MHZ/900MHZ FLAT BAR
• Series：-
• Mfr：Taoglas Limited
• Package：Bag
• RF Family/Standard：Cellular
• Frequency Group：Wide Band
• Frequency (Center/Band)：850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
• Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
• Antenna Type：Flat Bar
• Number of Bands：5
• VSWR：2
• Return Loss：-
• Gain：3dBi
• Features：Cable - 3m
• Termination：SMA Male
• Ingress Protection：IP67
• Grade：-
• Qualification：-
• Mounting Type：Adhesive
• Height (Max)：0.256" (6.50mm)
• Applications：CDMA, DCS, GSM, PCS, UMTS, WCDMA
• Power - Max：10 W

Antennas RF datasheet and documents for GSA.8822.A.301111
