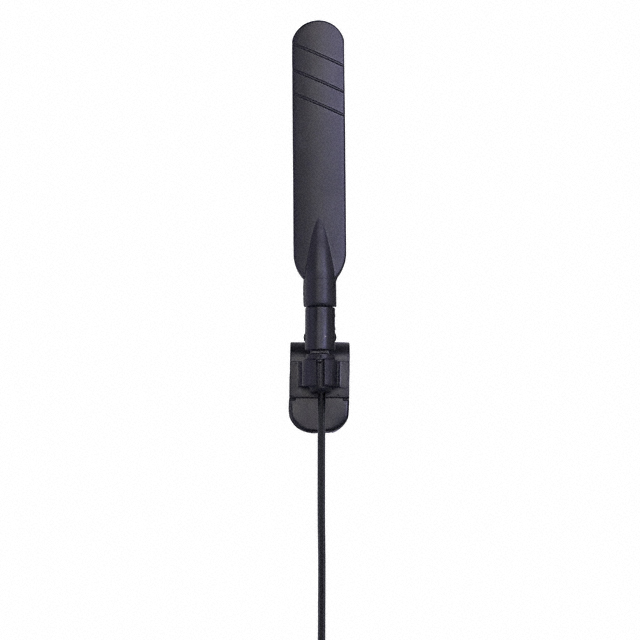

GSA.8825.A.051M11

Description：RF ANT 892MHZ/1.9GHZ WHIP 0.5M
Series：-
Mfr：Taoglas Limited
Package：Bag

SKU:3b988cf023d1 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GSA.8825.A.051M11 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 892MHZ/1.9GHZ WHIP 0.5M. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GSA.8825.A.051M11

Description：RF ANT 892MHZ/1.9GHZ WHIP 0.5M
Series：-
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：892MHz, 1.9GHz
Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type：Whip, Straight
Number of Bands：2
VSWR：2
Return Loss：-
Gain：2dBi
Features：-
Termination：CRC9
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Clip
Height (Max)：5.512" (140.00mm)
Applications：GSM, UMTS
Power - Max：-

Antennas RF datasheet and documents for GSA.8825.A.051M11

GSA.8825.A.051M11

Antennas RF Overview

The GSA.8825.A.051M11 is a straight whip RF antenna manufactured by Taoglas Limited, designed for cellular communication applications including GSM and UMTS standards. It operates within frequency ranges of 824MHz to 960MHz and 1.71GHz to 2.17GHz. The component features a CRC9 clip mounting mechanism and provides a gain of 2dBi. It utilizes an SMA connector interface for signal transmission.

Antennas RF Feature Summary

Straight whip antenna design optimized for cellular voice and data services
Integrated CRC9 clip mounting system for secure attachment
Dual-band operation supporting GSM and UMTS network protocols

Antennas RF Applications

GSM mobile communication devices
UMTS wireless terminal equipment
Cellular IoT modules requiring external connectivity

Antennas RF Procurement Notes

Verify the specific connector type and mounting clip configuration against the target device interface requirements. Confirm that the operating frequency bands align with regional cellular network allocations. Ensure mechanical clearance allows for proper installation of the CRC9 clip without interference from surrounding chassis components.

Antennas RF Selection Notes

Select this model when a dedicated external solution for GSM and UMTS is required. The straight whip form factor offers omnidirectional coverage suitable for portable or fixed terminals. Consider the CRC9 clip compatibility as a primary constraint for integration into existing hardware enclosures.

Antennas RF Part Context

This part belongs to the GSA series of cellular antennas from Taoglas Limited. It complements other flat bar and module variants in the portfolio by providing a distinct whip-style option for specific mechanical integration needs in handheld and industrial cellular devices.
