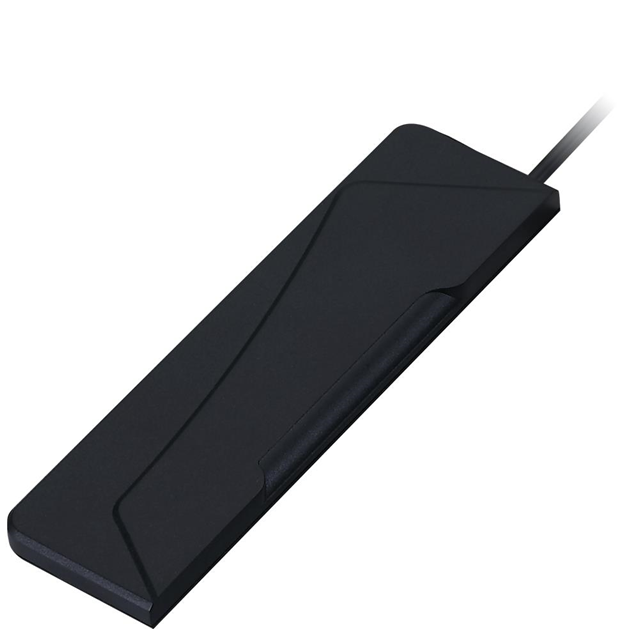

GSA.8827.A.101111 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 750MHZ/850MHZ FLAT BAR 1M. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GSA.8827.A.101111
- Description：RF ANT 750MHZ/850MHZ FLAT BAR 1M
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：750MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz
- Frequency Range：703MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz
- Antenna Type：Flat Bar
- Number of Bands：8
- VSWR：-
- Return Loss：-
- Gain：2.83dBi, 1.71dBi, 2.93dBi, 1.57dBi, 2.14dBi, 2.32dBi, 2.65dBi, 1.49dBi
- Features：Cable - 1m
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.303" (7.70mm)
- Applications：2G, 3G, 4G, 5G
- Power - Max：50 W
Antennas RF datasheet and documents for GSA.8827.A.101111
Antennas RF Overview
The GSA.8827.A.101111 is a Phoenix cellular antenna manufactured by Taoglas Limited, designed for 2G, 3G, 4G, and 5G applications. It operates across eight frequency bands with a gain of 7.3 dBi. The antenna features an SMA male connector and utilizes adhesive mounting. It supports linear polarization and has a 50-ohm impedance. The component is rated for a maximum operating temperature of +85°C.
Antennas RF Feature Summary
- Supports 2G, 3G, 4G, and 5G cellular standards
- Adhesive mounting style for secure installation
- SMA male connector termination
- Linear polarization with 50-ohm impedance
Antennas RF Applications
- IoT gateways
- Industrial routers
- Vehicle telematics
Antennas RF Procurement Notes
Verify the specific datasheet version to confirm current RoHS compliance and environmental ratings. Ensure the adhesive surface preparation meets manufacturer requirements for optimal bond strength. Confirm that the SMA male connector interface matches the host device's female port specifications before integration.
Antennas RF Selection Notes
Select this model for applications requiring broad cellular band coverage including 5G. The adhesive mount simplifies assembly compared to threaded options. Consider the 7.3 dBi gain for moderate range needs. Verify thermal limits against the operational environment to ensure reliability at temperatures up to +85°C.
Antennas RF Part Context
This part belongs to the Phoenix series from Taoglas, focusing on compact cellular solutions. It complements other flat bar and chip antennas in the portfolio by offering higher gain through its specific design. The series targets mobile and fixed wireless access devices needing reliable multi-band connectivity.
Antennas RF Replacement Considerations
Check GSA.8821.B.301111 for similar adhesive mounting but different frequency ranges. Compare with GSA.8827.A.101111 variants if different connector types are required. Verify exact band support and gain specifications when substituting.
