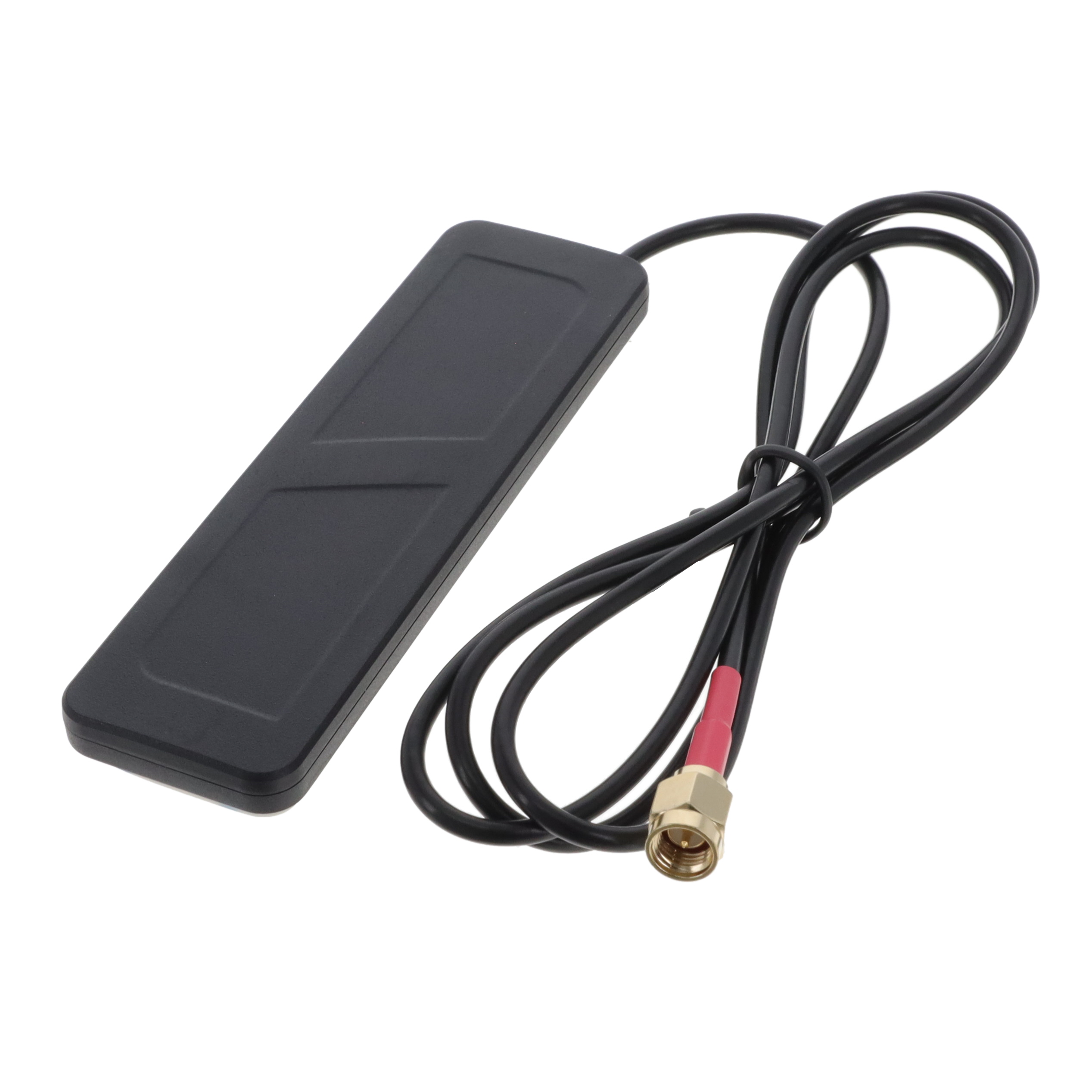

GSA.8835.A.101111

$12.83

Description：PHOENIX EXTERNAL 5G/4G ANT
Series：-
Mfr：Taoglas Limited
Package：Bulk

SKU:5608ca79867e Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GSA.8835.A.101111 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is PHOENIX EXTERNAL 5G/4G ANT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GSA.8835.A.101111

Description：PHOENIX EXTERNAL 5G/4G ANT
Series：-
Mfr：Taoglas Limited
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：657MHz, 752MHz, 892MHz, 1.48GHz, 1.96GHz, 2.59GHz, 3.4GHz, 3.85GHz, 5.54GHz
Frequency Range：617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.43GHz ~ 1.52GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 3.5GHz ~ 4.2GHz, 5.15GHz ~ 5.93GHz
Antenna Type：Flat Bar
Number of Bands：9
VSWR：-
Return Loss：-
Gain：0.95dBi, 2.44dBi, 2.59dBi, 3.25dBi, 4.12dBi, 3.78dBi, 3.79dBi, 3.70dBi, 2.81dBi
Features：Cable - 1m
Termination：SMA Male
Ingress Protection：IP67, IP68
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.311" (7.90mm)
Applications：4G, 5G
Power - Max：2 W

Antennas RF datasheet and documents for GSA.8835.A.101111

GSA.8835.A.101111

Antennas RF Overview

The GSA.8835.A.101111 is a Phoenix II external flat bar antenna designed for 4G and 5G applications. It features an SMA male connector and adhesive mounting. The unit provides IP67 waterproofing, ensuring durability in harsh environments. Maximum power handling is rated at 2 W. The antenna supports LTE, 4G, 5G, and IoT connectivity standards.

Antennas RF Feature Summary

Fully waterproof construction with IP67 rating
Adhesive mounting for secure installation
SMA male connector interface

Antennas RF Applications

5G network infrastructure
4G/LTE base stations
IoT gateway devices

Antennas RF Procurement Notes

Verify the SMA male connector type and IP67 sealing integrity against project requirements. Confirm adhesive backing compatibility with target surface materials. Ensure environmental exposure limits align with the specified waterproof rating for long-term reliability.

Antennas RF Selection Notes

Select this model for outdoor or industrial deployments requiring robust weather resistance. The adhesive mount simplifies installation compared to bracketed alternatives. Verify frequency band support matches specific regional 4G and 5G allocations before integration.

Antennas RF Part Context

This component belongs to the Phoenix II series by Taoglas Limited. The series focuses on ruggedized external antennas for cellular networks. It complements internal solutions by offering enhanced gain and environmental protection for challenging deployment scenarios.
