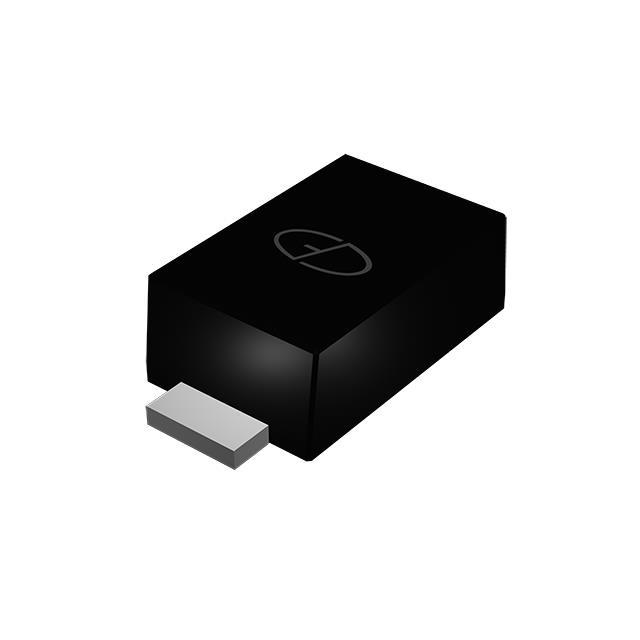

GSEM3B200

GSEM3B200 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is TVS DIODE 3.3VWM 12VC SOD923. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for GSEM3B200

• Description：TVS DIODE 3.3VWM 12VC SOD923
• Series：-
• Mfr：Good-Ark Semiconductor
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：1
• Voltage - Reverse Standoff (Typ)：3.3V (Max)
• Voltage - Breakdown (Min)：4V
• Voltage - Clamping (Max) @ Ipp：12V
• Current - Peak Pulse (10/1000µs)：5A (8/20µs)
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：8pF @ 1MHz
• Operating Temperature：-45°C ~ 125°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：SOD-923
• Supplier Device Package：SOD-923
• Unidirectional Channels：-
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for GSEM3B200
