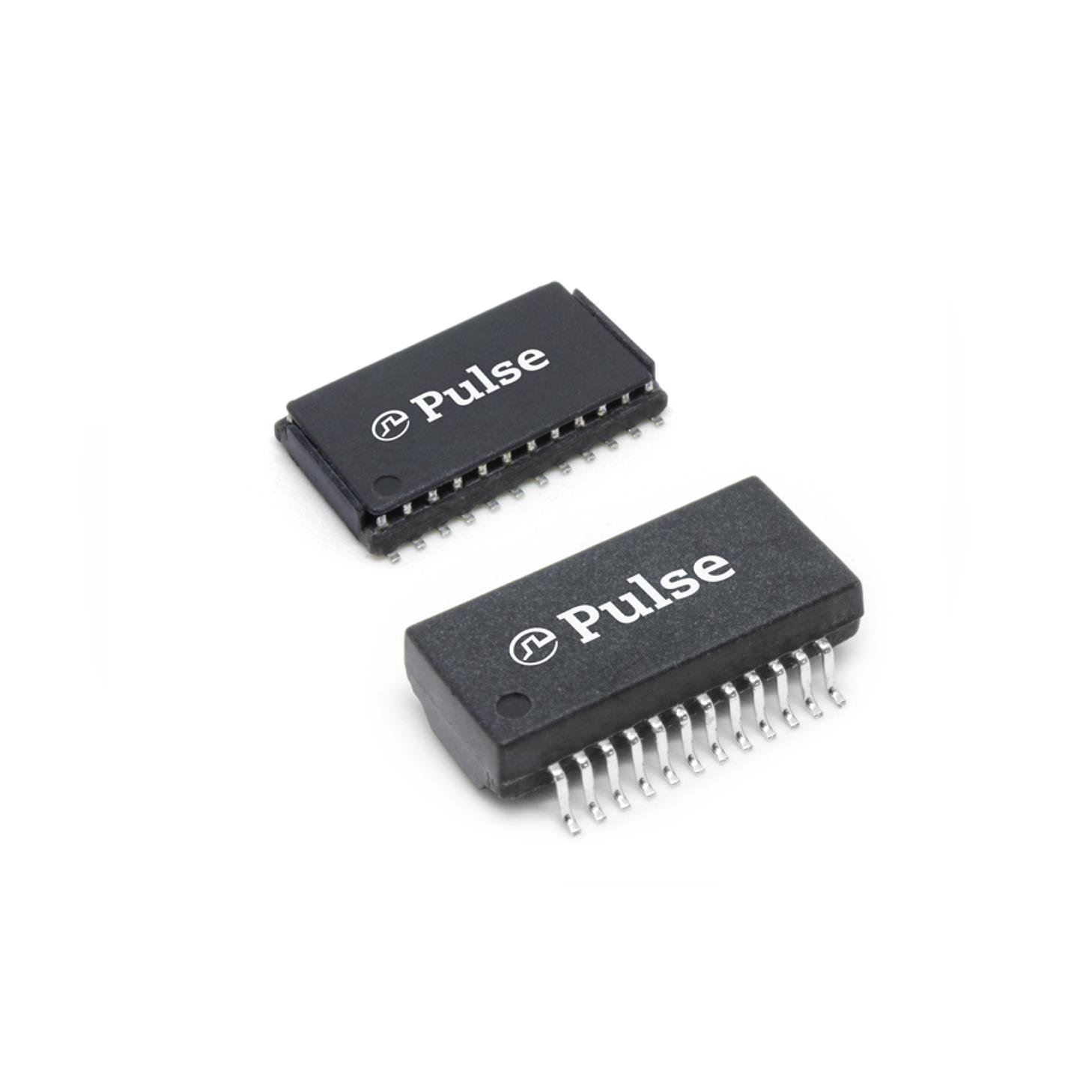

GST5009BM LF
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：MDL 1G SINGLE PORT N/A
- Series：-
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Transformer Type：LAN 1000 Base-T
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1:1CT Transmitter, 1:1CT Receiver
- Mounting Type：Surface Mount
- Size / Dimension：0.594" L x 0.280" W (15.10mm x 7.10mm)
- Height - Seated (Max)：0.157" (4.00mm)
- Operating Temperature：-40°C ~ 85°C
- Grade：-
- Qualification：-
Download product information
Overview
The GST5009BM LF is a single-port LAN transformer module designed for 1000 Base-T applications. It features a surface mount package with dimensions of 15.10mm length, 7.10mm width, and a maximum height of 4.00mm. The component operates within a temperature range of -40°C to +85°C and has an inductance of 350µH. It utilizes a 1:1CT turns ratio for both transmitter and receiver circuits.
Feature Summary
- Supports Gigabit Ethernet (1000 Base-T) data transmission standards
- Integrated common mode choke functionality for signal integrity
- Designed for high-density surface mount assembly processes
Applications
- Gigabit Ethernet network interface cards
- Ethernet switch port interfaces
- Industrial networking equipment
Procurement Notes
Verify the specific suffix designation against official datasheets to confirm pinout compatibility and isolation voltage requirements. Ensure that the selected variant matches the required insulation class and regulatory compliance standards for the target deployment region. Cross-reference manufacturer documentation for any recent design changes or obsolescence notices prior to finalizing procurement orders.
Selection Notes
Select this component based on its suitability for single-port Gigabit Ethernet implementations requiring integrated magnetics. Evaluate the physical footprint constraints against the specified 15.10mm by 7.10mm dimensions. Confirm that the operating temperature range meets the environmental conditions of the intended application environment without requiring additional thermal management solutions.
Part Context
This part belongs to Pulse Electronics' LAN transformer portfolio, specifically engineered for high-speed data communication networks. It integrates magnetic components necessary for Ethernet signaling into a compact surface-mount form factor. The product line supports various Ethernet speeds, with this specific model targeting the 1000 Base-T standard for robust network connectivity.
Replacement Considerations
Consult official substitution lists for direct equivalents. Verify pin-to-pin compatibility and electrical parameter alignment before considering alternative sources.
