GST5009G LF

$4.65

Description：MDL 1G SINGLE PORT N/A
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR)

SKU:2776bf15dcfe Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MDL 1G SINGLE PORT N/A
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR)
Transformer Type：-
Inductance：-
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：-
Mounting Type：-
Size / Dimension：-
Height - Seated (Max)：-
Operating Temperature：-
Grade：-
Qualification：-

Download product information

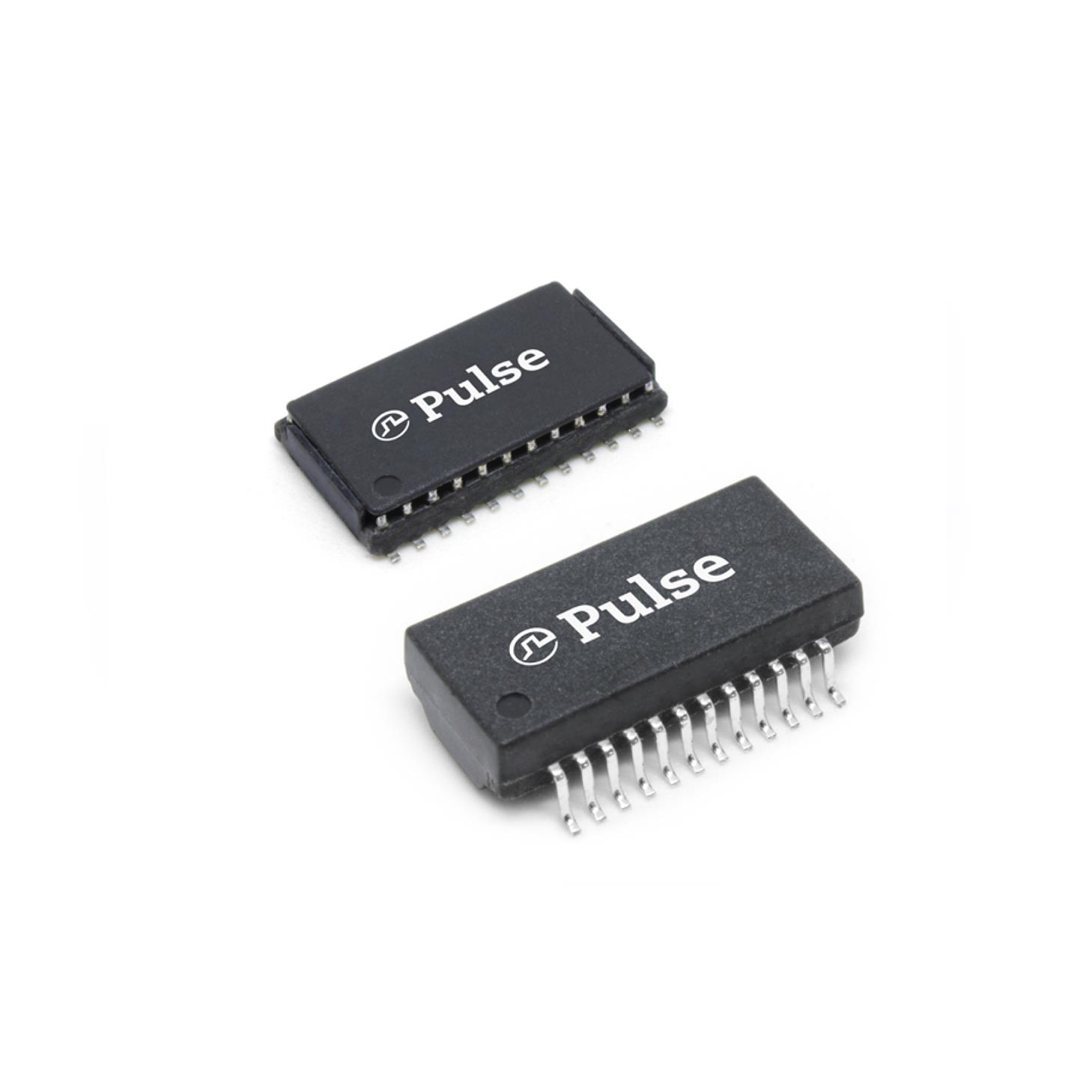

GST5009G LF

Overview

The GST5009G LF is a single-port LAN transformer module manufactured by Pulse Electronics, designed for Gigabit Ethernet (1000 Base-T) applications. It features a surface-mount package with dimensions of 15.10mm x 7.10mm and a maximum height of 4.00mm. The component operates within a temperature range of -40°C to +85°C and includes an isolation voltage rating of 1500Vrms. Key electrical specifications include an inductance of 350µH and a turns ratio of 1:1CT for both transmitter and receiver circuits.

Feature Summary

Integrated pulse transformer solution for Gigabit Ethernet physical layer interfaces
Surface-mount design optimized for automated assembly processes
High insulation voltage capability ensuring signal integrity and safety

Applications

Gigabit Ethernet network interface cards
Ethernet switches and routers
Network infrastructure equipment

Procurement Notes

Verify the specific suffix 'G' against the official datasheet to confirm functional equivalence with other variants in the GST5009 series. Ensure that the required isolation voltage and inductance parameters meet the target system specifications before finalizing procurement decisions.

Selection Notes

Select this component for designs requiring a compact, single-port Gigabit Ethernet transformer. Consider the surface-mount footprint and operating temperature range when evaluating compatibility with the host PCB layout and environmental conditions.

Part Context

This part belongs to the GST5009 series of LAN transformers from Pulse Electronics. These modules are engineered to provide essential signal coupling and impedance matching for high-speed data transmission over twisted-pair cabling in modern networking hardware.

Replacement Considerations

Public confirmed substitute part numbers include HXB5007HLT and HXB5008HLT, which share similar form factors and functional classifications within the manufacturer's portfolio.
