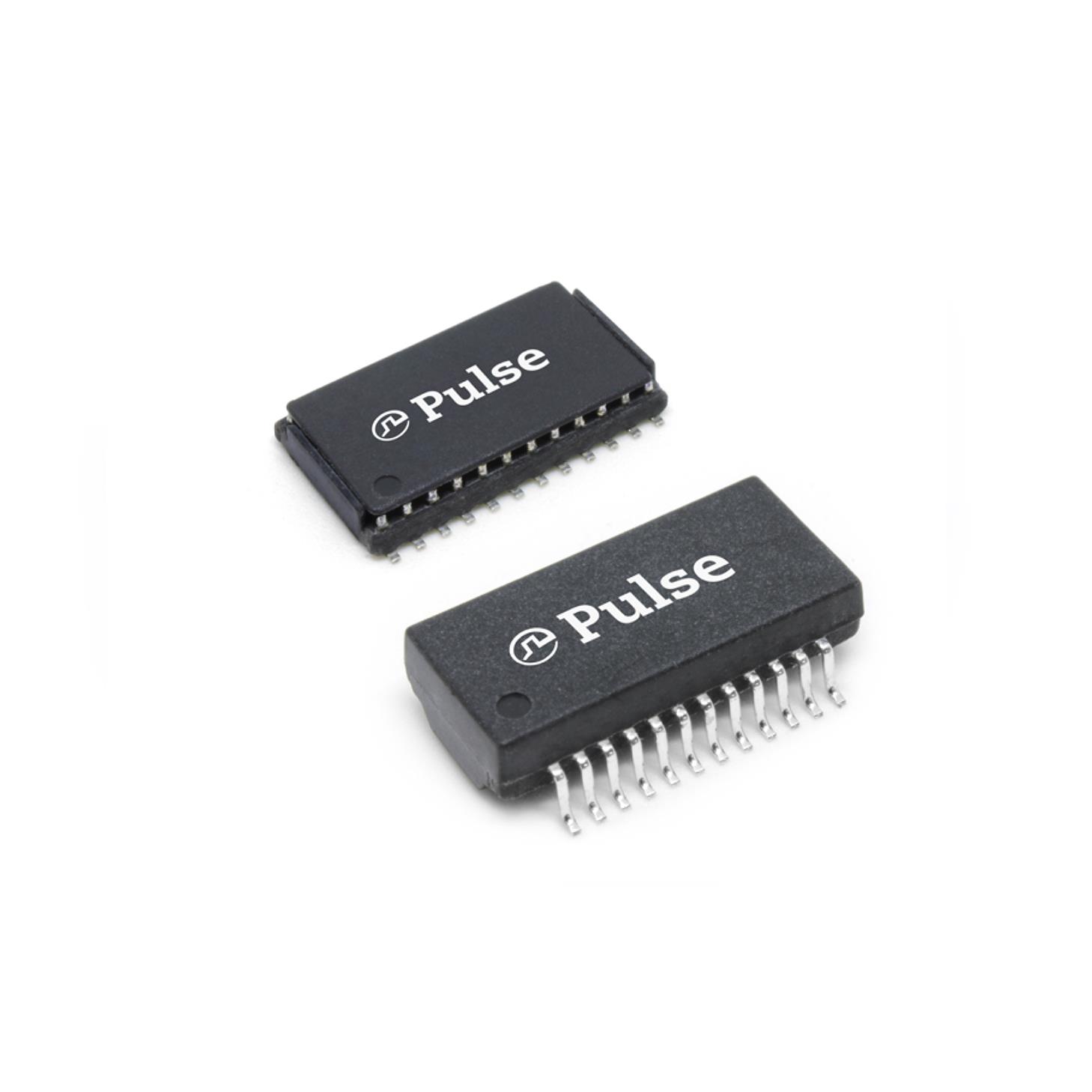

GST5009S1 LF

$4.04

Description：MDL 1G SINGLE PORT N/A
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR)

SKU:e1b74383d891 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MDL 1G SINGLE PORT N/A
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR)
Transformer Type：LAN 10/100/1000 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:1CT Transmitter, 1:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.594" L x 0.280" W (15.10mm x 7.10mm)
Height - Seated (Max)：0.157" (4.00mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

GST5009S1 LF

Overview

The GST5009S1 LF is a single-port LAN pulse transformer manufactured by Pulse Electronics, designed for Gigabit Ethernet applications. It supports 10/100/1000 Base-T standards with a primary inductance of 350µH. The device features a 1:1CT turns ratio for both transmitter and receiver paths. It utilizes a surface-mount package measuring 15.10mm x 7.10mm x 4.00mm maximum height. The component operates within a temperature range of -40°C to 85°C and complies with RoHS3 specifications.

Feature Summary

Supports 10/100/1000 Base-T Gigabit Ethernet transmission
Single-port configuration with integrated transmitter and receiver isolation
Surface-mount design optimized for automated assembly processes

Applications

Gigabit Ethernet network interface cards
Ethernet switch port circuits
Industrial networking equipment requiring wide temperature operation

Procurement Notes

Verify the specific suffix designation against official datasheets to confirm exact electrical tolerances and pinout configurations. Ensure compatibility with existing PCB footprint dimensions and reflow soldering profiles. Confirm RoHS3 compliance status through current manufacturer documentation before finalizing procurement orders.

Selection Notes

Select this component for designs requiring isolated Gigabit Ethernet connectivity with high common-mode rejection. Consider the 350µH inductance value for impedance matching requirements. Evaluate the surface-mount package size constraints against available board space. Verify thermal management capabilities for the specified operating temperature range.

Part Context

This part belongs to Pulse Electronics' LAN transformer portfolio, specifically engineered for data communication interfaces. It serves as a critical isolation component between PHY chips and magnetics. The GST5009 series provides reliable signal integrity for high-speed digital transmission over twisted pair cabling.

Replacement Considerations

Cross-reference with GST5009BM LF for similar single-port Gigabit Ethernet applications. Verify pin compatibility and electrical parameters before substitution.
