GT-215U

Power Line Filter Modules Overview

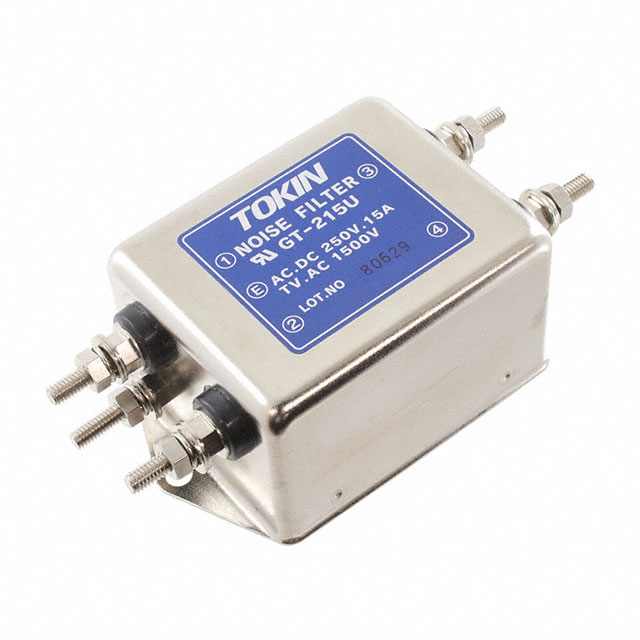

The KEMET GT-215U is a single-stage, general-purpose power line filter module designed for chassis mounting. It supports a rated voltage of 250 VAC and a continuous current of 15 A. The unit operates within an ambient temperature range of -20°C to 55°C. Termination is achieved via threaded posts compatible with M4 fasteners. This component provides electromagnetic interference suppression for single-phase AC power applications.

Power Line Filter Modules Feature Summary

• Single-stage EMI filtering architecture
• Chassis mount construction with threaded post termination
• General-purpose design for AC power lines

Power Line Filter Modules Applications

• Single-phase AC power input stages
• Industrial equipment chassis integration
• General-purpose electronic enclosures requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and mechanical drawings prior to procurement. Confirm that the M4 threaded post termination matches the host chassis hole pattern and torque specifications. Ensure the operating environment remains within the specified -20°C to 55°C range to maintain performance integrity and safety compliance.

Power Line Filter Modules Selection Notes

Select this model for single-phase applications requiring 15 A capacity at 250 VAC. Evaluate the available chassis space against the physical dimensions of the module. Consider the thermal environment, as the operating limit is 55°C. Verify that the single-stage attenuation meets the system's EMI requirements before finalizing the design.

Power Line Filter Modules Part Context

The GT series represents KEMET's lineup of general-purpose power line filters. These modules are engineered for straightforward integration into AC power entry points. They provide essential noise reduction for sensitive electronics in industrial and commercial settings without requiring complex circuitry or external components.

Power Line Filter Modules Replacement Considerations

Consult official KEMET documentation for qualified substitute part numbers. Ensure any replacement maintains identical voltage, current, and mounting specifications.
