GTXO-04_8.388608M+200C50PPM

Oscillators Overview

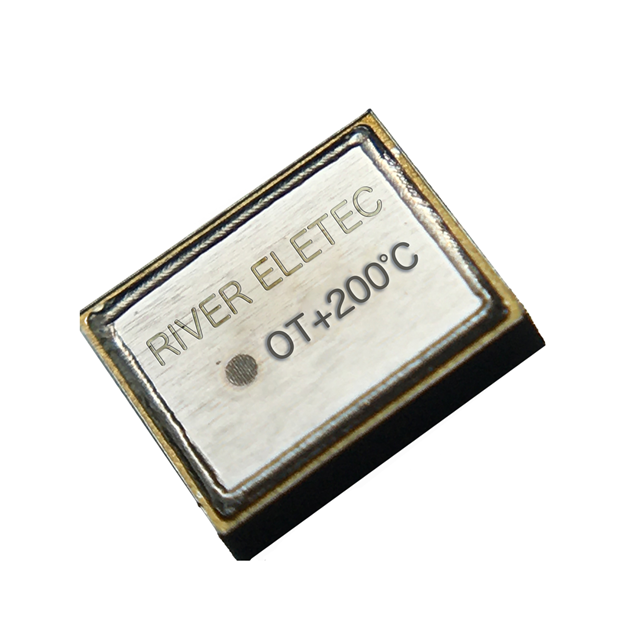

The GTXO-04_8.388608M+200C50PPM is a CMOS oscillator manufactured by River Eletec Corporation, operating at a frequency of 8.388608 MHz. It features a ±50 ppm frequency stability and supports a 2.5V supply voltage with standby power-down capability. The device utilizes a crystal base resonator and is housed in a 4-SMD, No Lead surface-mount package. It is designed for high-temperature environments, with an operating range extending from -40°C to +200°C.

Oscillators Feature Summary

• Supports standby power-down mode for energy efficiency
• Utilizes CMOS output interface for digital logic compatibility
• Engineered for extreme temperature operation up to 200°C
• Compact surface-mount form factor suitable for dense PCB layouts

Oscillators Applications

• High-temperature industrial control systems
• Automotive electronics requiring extended thermal ranges
• Aerospace communication equipment
• Military-grade signal processing units

Oscillators Procurement Notes

Verify the exact suffix specifications against the manufacturer's official datasheet before procurement. Confirm that the specific part number matches the required frequency tolerance and temperature rating. Ensure compatibility with the target circuit's voltage levels and load requirements. Request sample units for thermal testing if operating near the upper limit of the specified range.

Oscillators Selection Notes

Select this component when a stable 8.388608 MHz clock source is required in environments exceeding standard commercial temperature limits. The wide operating range makes it suitable for harsh conditions where standard oscillators may fail. Consider the CMOS output drive strength and power consumption characteristics relative to the system's power budget and noise sensitivity requirements.

Oscillators Part Context

This oscillator belongs to the GTXO-04 series from River Eletec Corporation, which specializes in ultra-small crystal devices for smartphones and electronic applications. The series includes various frequencies and tolerances, all sharing the same compact 4-SMD package design. This specific variant addresses niche markets requiring precise timing under extreme thermal stress.

Oscillators Replacement Considerations

Direct substitutes must match the 8.388608 MHz frequency, ±50 ppm tolerance, 2.5V supply, and 4-SMD package. Verify that alternative components support the -40°C to +200°C operating range. Check pinout compatibility and CMOS output characteristics to ensure seamless integration without circuit redesign.
