GW.05.0153

Antennas RF Overview

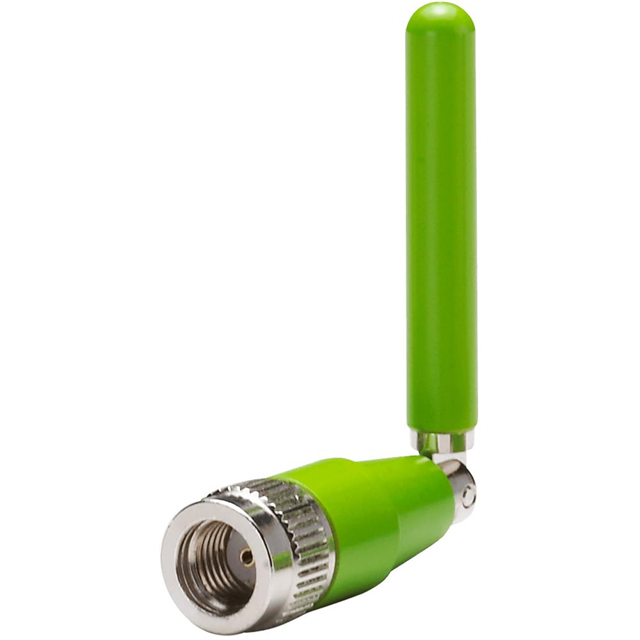

The Taoglas GW.05.0153 is a compact, high-efficiency monopole antenna designed for dual-band Wi-Fi applications operating in the 2.4 GHz and 5.8–7.125 GHz frequency ranges. It supports Wi-Fi 6 standards and integrates Bluetooth and Zigbee capabilities. The unit features an RP-SMA male connector and measures 62.3mm ± 1.5mm in length. Its design allows for full 360-degree rotation and 180-degree hinge articulation to optimize signal reception.

Antennas RF Feature Summary

• High efficiency performance with and without ground plane
• Full coverage of Wi-Fi 6 frequencies including 5.9–7.125 GHz band
• Rotatable hinge design enabling 360° rotation and 180° articulation

Antennas RF Applications

• Peplink access points and routers
• Wi-Fi 6 network infrastructure
• Bluetooth and Zigbee IoT devices

Antennas RF Procurement Notes

Verify the specific ordering suffix to confirm color options and connector type. Ensure compatibility with existing mounting hardware due to the unique hinge mechanism. Confirm that the RP-SMA male interface matches the host device port before integration.

Antennas RF Selection Notes

Select this model when wide-band coverage across 2.4 GHz and 5.8–7.125 GHz is required. The rotatable design is suitable for environments needing precise signal directionality. Consider the compact form factor for space-constrained installations requiring high-efficiency radiation patterns.

Antennas RF Part Context

This component belongs to the GW.05 series of dual-band Wi-Fi antennas from Taoglas Limited. The series includes variants such as the GW.05.0153W and GW.05.0153L, which share similar mechanical and electrical characteristics but may differ in color or specific frequency tuning.

Antennas RF Replacement Considerations

Direct substitutes include the GW.05.0153W and GW.05.0153L. Verify that replacement units maintain the same RP-SMA male connector and dimensional constraints for proper fitment.
