GW.05.0153L

Antennas RF Overview

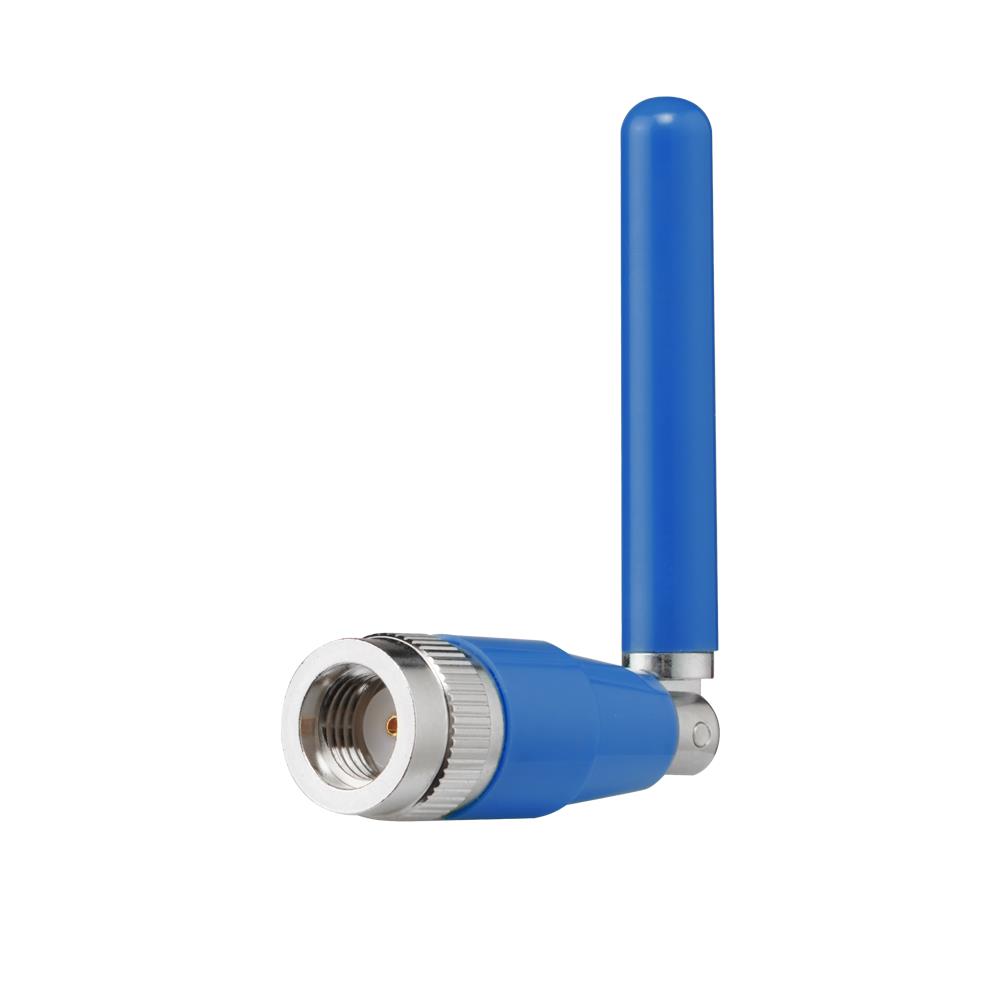

The Taoglas GW.05.0153L is a dual-band Wi-Fi monopole antenna designed for wireless communication applications. It operates across the 2.4 GHz and 5.8 GHz frequency bands, supporting standards including Bluetooth, WLAN, and Zigbee. The component features an RP-SMA male connector for secure attachment and utilizes a tilt mount installation style. Constructed as a whip-style antenna, it offers high efficiency and covers frequencies up to 7.125 GHz, suitable for Wi-Fi 6 environments. The unit is rated for operation within a temperature range of -40°C to +85°C.

Antennas RF Feature Summary

• Dual-band capability covering 2.4 GHz and 5.8 GHz ranges with support for Wi-Fi 6 frequencies up to 7.125 GHz
• High-efficiency monopole design with integrated tilt mount for flexible orientation
• RP-SMA male connector interface for reliable signal transmission
• Operational stability maintained across extended industrial temperature ranges

Antennas RF Applications

• Bluetooth connectivity systems
• WLAN infrastructure devices
• Zigbee network implementations
• Wi-Fi 6 enabled routers and gateways

Antennas RF Procurement Notes

Verify component authenticity through authorized Taoglas distributors or certified supply chain partners. Confirm that the received hardware matches the specific GW.05.0153L designation, noting the L suffix which distinguishes this variant from standard models. Ensure storage conditions comply with moisture sensitivity level requirements prior to assembly. Cross-reference datasheet specifications against project technical requirements to validate compatibility with existing RF circuitry and mechanical mounting constraints.

Antennas RF Selection Notes

Select this model when application requirements demand dual-band performance across 2.4 GHz and 5.8 GHz spectra with integrated tilt functionality. The RP-SMA male connector necessitates compatible cable assemblies or host device interfaces. Consider the physical dimensions and whip-style form factor for enclosure integration. Validate that the operational temperature range aligns with the environmental conditions of the intended deployment site to ensure long-term reliability.

Antennas RF Part Context

This component belongs to the Taoglas GW.05 series, which encompasses hinged rotatable antennas engineered for high-efficiency wireless communication. The series supports various Wi-Fi standards and includes variants tailored for different mounting styles and connector types. The GW.05.0153L specifically addresses needs for dual-band coverage with adjustable orientation, fitting into the broader portfolio of passive RF antennas designed for robust IoT and networking hardware.

Antennas RF Replacement Considerations

The GW.05.0153 is a related variant within the same product family. Verify if the specific L suffix configuration is mandatory for the application, as differences may exist in mechanical tolerances or internal tuning. Direct substitution requires confirmation of identical connector type, impedance matching, and frequency response characteristics to maintain system performance integrity.
