GW.05.0153W is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is 2.4/5.8GHZ WHITE TERMINAL MOUNT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GW.05.0153W
- Description：2.4/5.8GHZ WHITE TERMINAL MOUNT
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.45GHz, 5.5GHz, 6.525GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：Whip, Right Angle
- Number of Bands：3
- VSWR：-
- Return Loss：-
- Gain：2.8dBi, 3.6dBi, 4.1dBi
- Features：-
- Termination：RP-SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：2.453" (62.30mm)
- Applications：802.11a/b/g/n/ac, Bluetooth, Wi-Fi, WLAN, Zigbee™
- Power - Max：10 W
Antennas RF datasheet and documents for GW.05.0153W
Antennas RF Overview

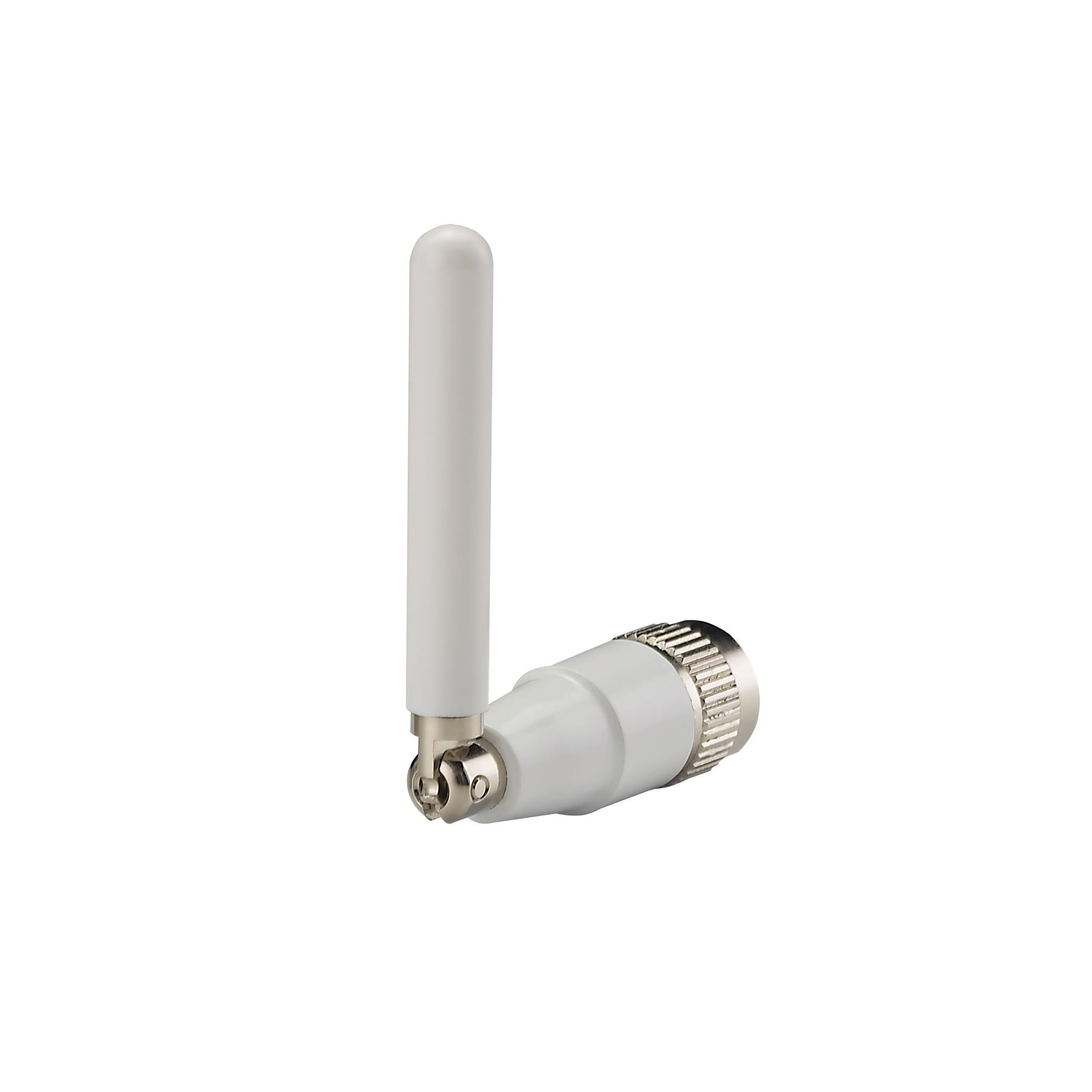

The Taoglas GW.05.0153W is a dual-band Wi-Fi monopole antenna designed for high-efficiency operation across 2.4 GHz, 5.8 GHz, and up to 7.125 GHz frequencies. It supports Wi-Fi 6 standards and includes Bluetooth, WLAN, and Zigbee capabilities. The unit measures 62.3mm in length with a 10mm diameter when straight. It features an RP-SMA male connector and offers full 360-degree rotation combined with 180-degree hinge articulation for flexible mounting.
Antennas RF Feature Summary
- Full coverage of Wi-Fi 6 frequencies including 2.4, 5.8, and 7.125 GHz bands
- High efficiency performance with and without ground plane
- Flexible mounting via full 360-degree rotation and 180-degree hinge articulation
Antennas RF Applications
- Wi-Fi 6 access points and routers
- Bluetooth and WLAN connectivity modules
- Zigbee network devices
- IoT gateways requiring multi-band support
Antennas RF Procurement Notes
Verify the specific suffix 'W' to confirm the inclusion of the hinged rotatable mechanism and exact dimensions. Ensure compatibility with RP-SMA male connectors on the host device. Confirm that the operating frequency range extends to 7.125 GHz if Wi-Fi 6E or UNII-4 band support is required for the application.
Antennas RF Selection Notes
Select this model when mechanical flexibility is critical due to its unique hinge and rotation design. It is suitable for applications requiring broad frequency coverage from 2.4 GHz through 7.125 GHz. Consider the compact form factor for space-constrained enclosures while maintaining high radiation efficiency across multiple wireless protocols.
Antennas RF Part Context
This component belongs to the Taoglas GW.05 series of Wi-Fi antennas. The series is characterized by high-efficiency monopole designs optimized for modern wireless standards. The GW.05.0153W variant specifically adds mechanical articulation features compared to standard fixed-mount versions within the same product family.
Antennas RF Replacement Considerations
The GW.05.0153 is a related variant but may lack the specific hinge articulation or color customization options associated with the 'W' suffix. Verify connector type and mechanical dimensions before substitution to ensure fitment.
