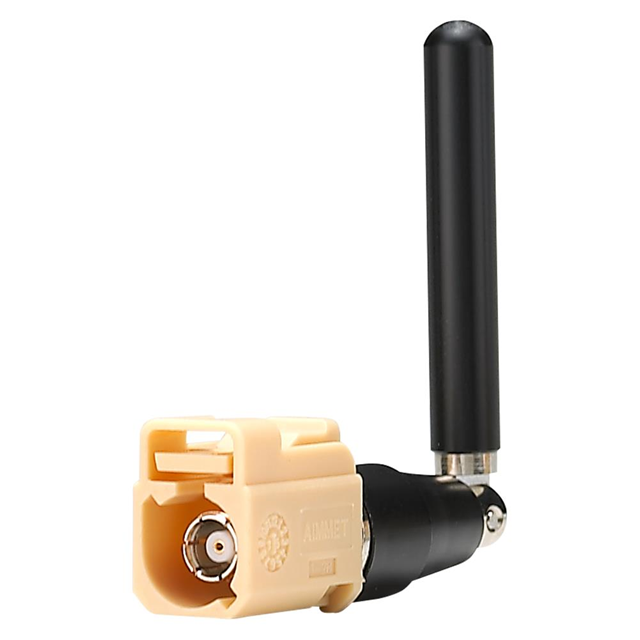

GW.05.0E23 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is GW.05.0E23 DUAL-BAND WIFI 2.4/5.. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GW.05.0E23
- Description：GW.05.0E23 DUAL-BAND WIFI 2.4/5.
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：UHF (3GHz ~ 4GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：3.775GHz, 4.175GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz
- Antenna Type：Whip, Tilt
- Number of Bands：2
- VSWR：-
- Return Loss：-3dB, -5dB
- Gain：3.73dBi, 0.64dBi, 4.09dBi, 2.46dBi
- Features：-
- Termination：SMB, Fakra
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：2.740" (69.60mm)
- Applications：Bluetooth, Wi-Fi, Zigbee™
- Power - Max：10 W
Antennas RF datasheet and documents for GW.05.0E23
Antennas RF Overview
The GW.05.0E23 is a dual-band Wi-Fi monopole antenna designed for WLAN applications, operating across the 2.4GHz and 5.8GHz frequency ranges. It features a high-efficiency design with a peak gain of -5.53dBi. The component utilizes a Fakra connector mount interface and includes a hinged rotatable mechanism for flexible installation. Constructed as a whip-style antenna, it supports standard Wi-Fi protocols within its specified bandwidth.
Antennas RF Feature Summary
- Dual-band operation supporting both 2.4GHz and 5.8GHz Wi-Fi frequencies
- Hinged rotatable mounting mechanism for flexible orientation
- Fakra connector interface for secure attachment
Antennas RF Applications
- Wi-Fi access points
- WLAN modules
- Wireless routers
Antennas RF Procurement Notes
Verify the specific connector type and cable length requirements against the system design before procurement. Confirm that the Fakra mount interface is compatible with the intended enclosure or bracket. Ensure the hinged mechanism allows for the required angular adjustment during final assembly.
Antennas RF Selection Notes
Select this model when a rotatable dual-band solution is required for space-constrained Wi-Fi installations. The hinged design facilitates optimal signal alignment in fixed positions. Consider the mechanical durability of the hinge if the device undergoes frequent movement or vibration during operation.
Antennas RF Part Context
This component belongs to Taoglas Limited's range of RF antennas, specifically targeting wireless local area network infrastructure. It complements their portfolio of fixed and adjustable antennas by providing a mechanically adaptable solution for dual-band connectivity needs in consumer and industrial electronics.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing Fakra connectors and ensure the new antenna meets the same dual-band frequency and gain specifications.
