GW.11.A153

Antennas RF Overview

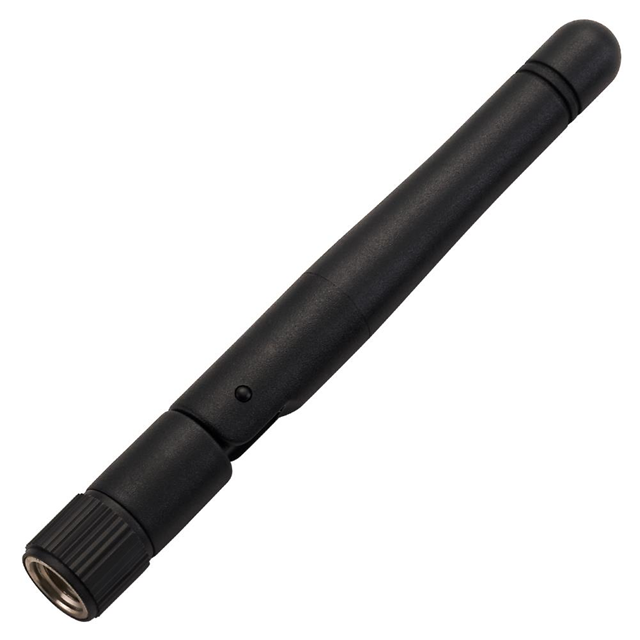

The Taoglas GW.11.A153 is a 2.4 GHz dipole antenna designed for UHF frequency applications ranging from 2401 MHz to 2483.5 MHz. It features an RP-SMA male connector and a hinged screw mount interface, ensuring secure installation in various environments. The component provides an omnidirectional radiation pattern with a gain of approximately 2.3 dBi. Constructed for durability, it meets IP65 ingress protection standards, making it suitable for industrial and IoT deployments requiring reliable wireless connectivity.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for consistent signal coverage
• IP65 rated housing for enhanced environmental protection
• Hinged screw mount design for flexible positioning and secure attachment

Antennas RF Applications

• Bluetooth Low Energy (BLE) device integration
• Wi-Fi and Wireless LAN network endpoints
• ZigBee and IEEE 802.15.4 sensor networks
• Industrial IoT gateways and controllers

Antennas RF Procurement Notes

Verify the specific connector type and mounting configuration against system requirements before ordering. Confirm that the RP-SMA male interface matches existing cable assemblies or adapter hardware. Ensure the IP65 rating aligns with the operational environment's exposure to dust and water jets. Cross-reference the operating frequency range with regulatory compliance needs for the target region.

Antennas RF Selection Notes

Select this model when a robust, externally mounted solution is required for 2.4 GHz ISM band applications. The hinged mount allows for optimal orientation adjustment after installation. Consider the physical dimensions and weight constraints if space is limited. This antenna is appropriate for scenarios demanding higher durability than standard PCB-mounted alternatives.

Antennas RF Part Context

The GW.11 series represents Taoglas' line of ruggedized dipole antennas engineered for harsh industrial environments. These components bridge the gap between high-performance RF characteristics and mechanical resilience. The GW.11.A153 variant specifically addresses the need for versatile mounting options while maintaining strict adherence to wireless protocol standards.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific configuration. Evaluate other GW.11 variants only if connector types or mounting styles differ. Ensure any alternative maintains compatibility with the 2.4 GHz frequency band and RP-SMA interface.
