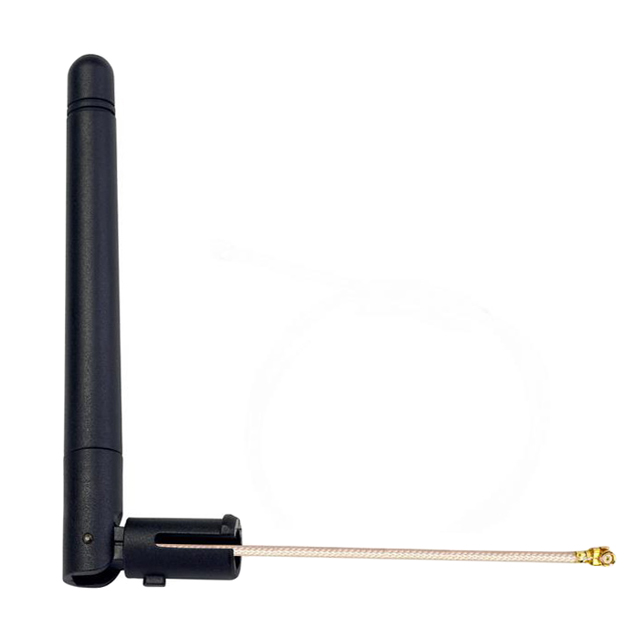

GW.17.07.0250E is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is GW.17 2.4GHZ TERMINAL ANTENNA, I. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GW.17.07.0250E
- Description：GW.17 2.4GHZ TERMINAL ANTENNA, I
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：2.7dBi
- Features：Cable - 250mm
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：4.433" (112.60mm)
- Applications：-
- Power - Max：2 W
Antennas RF datasheet and documents for GW.17.07.0250E
Antennas RF Overview
The GW.17.07.0250E is a 2.4 GHz terminal dipole antenna manufactured by Taoglas Limited, designed for robust performance in wireless applications. It features an I-PEX MHF IU.FL connector interface and utilizes RG-178 cable with a length of 250 mm. The component operates within the 2.4 GHz frequency band, supporting protocols such as Bluetooth, Wi-Fi, WLAN, and Zigbee. It is constructed as a tilt antenna with U.FL (UMCC) termination, offering high radiation efficiency for quick assembly onto finished products.
Antennas RF Feature Summary
- High radiation performance optimized for reliable signal transmission
- Click-in design enables rapid mechanical assembly to enclosures
- Integrated RG-178 cable provides flexible connection routing
- Robust construction suitable for demanding operational environments
Antennas RF Applications
- Bluetooth device integration
- Wi-Fi terminal equipment
- WLAN access points
- Zigbee network nodes
Antennas RF Procurement Notes
Verify the specific connector type and cable length against system requirements before ordering. Confirm that the I-PEX MHF IU.FL interface matches the host board footprint. Ensure the RG-178 cable diameter fits within available clearance constraints. Check for RoHS compliance status if required by project specifications. Validate environmental ratings against installation conditions.
Antennas RF Selection Notes
Select this model when a pre-assembled terminal antenna is preferred over PCB-mounted solutions. The integrated cable simplifies layout compared to discrete components. Consider the physical dimensions of the dipole element for enclosure placement. Evaluate the connector mating cycle if frequent disconnection is anticipated. Compare radiation patterns with other Taoglas dipole options for optimal gain requirements.
Antennas RF Part Context
This component belongs to the Taoglas Click-in Terminal Antenna series, which focuses on ease of integration into final assemblies. The GW.17 series specifically targets 2.4 GHz ISM band applications. It complements the manufacturer's broader portfolio of cellular and GNSS antennas by providing dedicated IoT connectivity solutions.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult Taoglas engineering for direct equivalents or updated series replacements.
