GW.22.5151

Antennas RF Overview

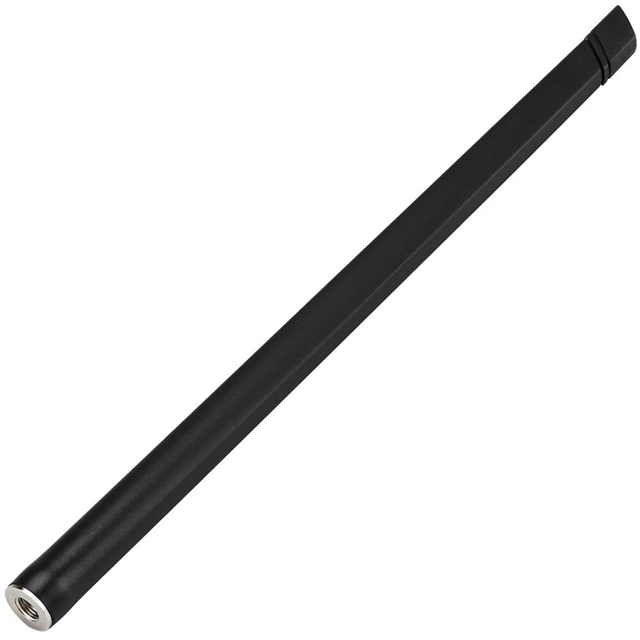

The GW.22.5151 is a dipole antenna designed for 2.4GHz applications, including Bluetooth, Wi-Fi, WLAN, and Zigbee. It features an RP-SMA male connector and offers a gain of 4.64dBi. The antenna supports frequencies at 2.4GHz, 2.45GHz, and 2.5GHz with a maximum power handling of 10W. It has a height of 235.00mm and an IP67 rating.

Antennas RF Feature Summary

• Provides up to 5dB gain for 2.4GHz wireless applications
• Features an RP-SMA male connector for secure attachment
• Includes IP67 ingress protection rating for environmental resistance

Antennas RF Applications

• Bluetooth devices
• Wi-Fi networks
• WLAN systems
• Zigbee modules

Antennas RF Procurement Notes

Verify the specific connector type and frequency range against project requirements before ordering. Confirm that the IP67 rating meets environmental standards. Ensure compatibility with existing RF interfaces. Check RoHS compliance status if required by regulations.

Antennas RF Selection Notes

Select this model for applications requiring robust 2.4GHz connectivity. Consider the physical dimensions and mounting style. Evaluate the gain specifications against signal coverage needs. Assess the connector interface for system integration.

Antennas RF Part Context

This component belongs to the GW series of antennas from Taoglas Limited. It is designed for reliable wireless communication in various industrial and consumer applications. The series focuses on providing high-performance solutions for short-range wireless protocols.

Antennas RF Replacement Considerations

Check for compatible substitutes within the same manufacturer's portfolio. Verify equivalent electrical characteristics and mechanical fit. Ensure alternative parts meet the same regulatory and environmental standards.
