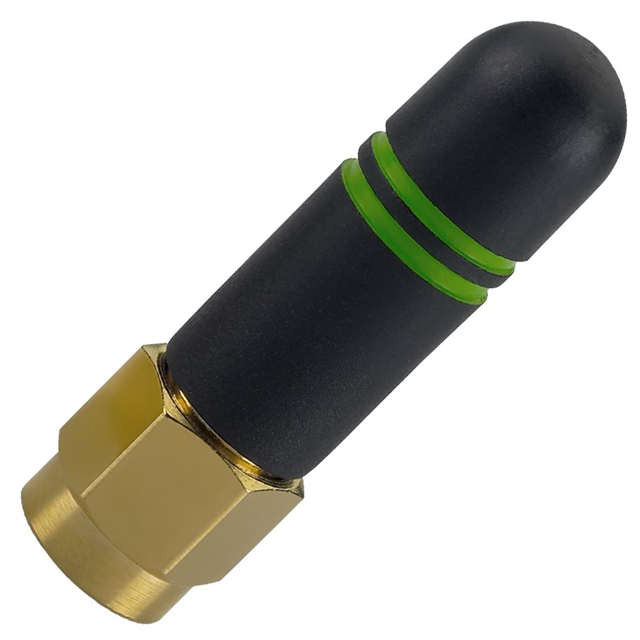

GW.26.0111 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 2.4GHZ WHIP STR SMA MALE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GW.26.0111
- Description：RF ANT 2.4GHZ WHIP STR SMA MALE
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：0dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：1.181" (30.00mm)
- Applications：Bluetooth, WLAN
- Power - Max：1 W
Antennas RF datasheet and documents for GW.26.0111
Antennas RF Overview
The GW.26.0111 is a 2.4GHz whip RF antenna manufactured by Taoglas Limited, designed for Bluetooth and WLAN applications. It operates within the 2.4GHz to 2.5GHz frequency range with a center frequency of 2.4GHz. The antenna provides 0dBi gain and supports a maximum power of 1 W. It features an SMA male connector for installation and has a maximum height of 30.00mm (1.181 inches).
Antennas RF Feature Summary
- Straight whip design optimized for 2.4GHz ISM band operations.
- Integrated SMA male connector for direct interface compatibility.
- Compact form factor suitable for space-constrained device integration.
Antennas RF Applications
- Bluetooth wireless communication modules
- WLAN network devices
- IoT sensor nodes requiring 2.4GHz connectivity
Antennas RF Procurement Notes
Verify the specific manufacturer part number GW.26.0111 against official Taoglas documentation to ensure component authenticity. Confirm that the SMA male connector type aligns with system interface requirements. Check RoHS compliance status and lead times through authorized distributors. Ensure storage conditions respect moisture sensitivity levels if applicable during assembly.
Antennas RF Selection Notes
Select this component when a low-profile, omnidirectional antenna is required for 2.4GHz protocols. The 0dBi gain suits applications where minimal signal amplification is needed. The straight whip style allows flexible mounting orientations. Verify clearance for the 30mm height dimension in the final enclosure design before procurement.
Antennas RF Part Context
This model belongs to the GW.26 series of antennas from Taoglas Limited. The series focuses on compact RF solutions for short-range wireless standards. The GW.26.0111 specifically targets the unlicensed 2.4GHz spectrum, distinguishing it from cellular or GNSS variants within the broader product portfolio.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Taoglas technical support for cross-reference options if this specific configuration is unavailable.
