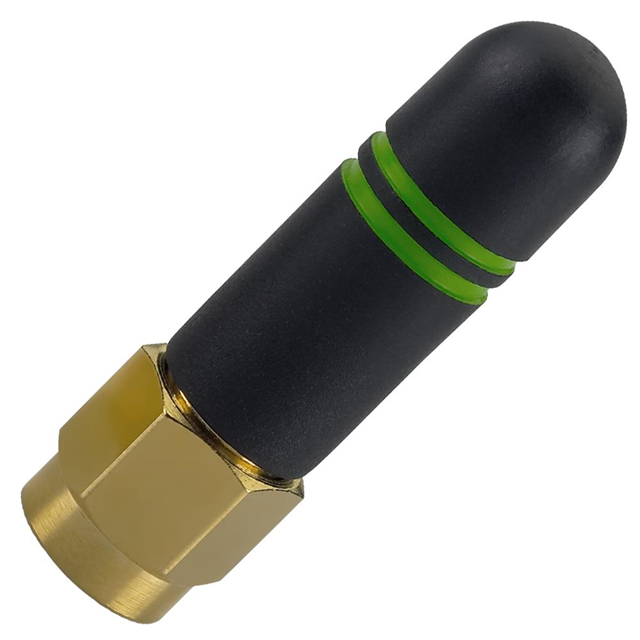

GW.26.0151 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 2.4GHZ WHIP STR RP-SMA ML. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GW.26.0151
- Description：RF ANT 2.4GHZ WHIP STR RP-SMA ML
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：1.8dBi
- Features：-
- Termination：RP-SMA Male
- Ingress Protection：IP65
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：1.193" (30.30mm)
- Applications：Bluetooth, WLAN
- Power - Max：1 W
