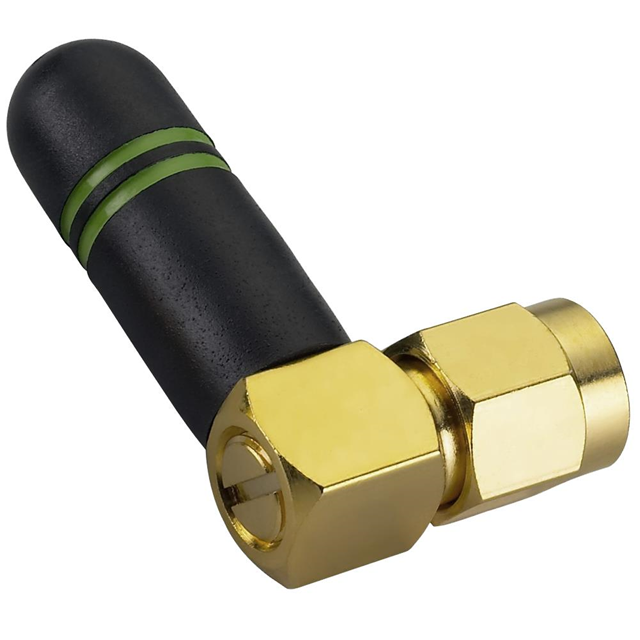

GW.26.0152

$9.03

Description：RF ANT 2.4GHZ WHIP RA RP-SMA MAL
Series：-
Mfr：Taoglas Limited
Package：Bag

SKU:05af94decf47 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GW.26.0152 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 2.4GHZ WHIP RA RP-SMA MAL. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GW.26.0152

Description：RF ANT 2.4GHZ WHIP RA RP-SMA MAL
Series：-
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Right Angle
Number of Bands：1
VSWR：-
Return Loss：-
Gain：0dBi
Features：-
Termination：RP-SMA Male
Ingress Protection：IP65
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：1.114" (28.30mm)
Applications：Bluetooth, WLAN
Power - Max：1 W

Antennas RF datasheet and documents for GW.26.0152

GW.26.0152

Antennas RF Overview

The GW.26.0152 is a 2.4GHz to 2.5GHz vertical monopole antenna with an RP-SMA connector, offering 1.8 dBi gain and 50 Ohm impedance.

Antennas RF Feature Summary

Vertical orientation design for consistent radiation patterns
RP-SMA connector interface for reliable RF connection
Compact form factor suitable for space-constrained wireless devices

Antennas RF Applications

Bluetooth module integration
WLAN device connectivity
Zigbee sensor networks

Antennas RF Procurement Notes

Verify the specific connector variant (straight or right-angle) matches the enclosure design. Confirm that the RP-SMA mating requirements align with the host system's cable or board layout specifications prior to finalizing the procurement order.

Antennas RF Selection Notes

Select this model when a low-profile vertical antenna is required for 2.4GHz ISM band applications. Ensure the host device provides adequate ground plane clearance to maintain the specified 1.8 dBi gain performance without obstruction.

Antennas RF Part Context

This component belongs to Taoglas' GW series of miniature terminal mount antennas. It serves as a dedicated RF solution for short-range wireless protocols operating in the 2.4GHz spectrum, distinct from their cellular or GNSS antenna portfolios.
