GW.34.5153

Antennas RF Overview

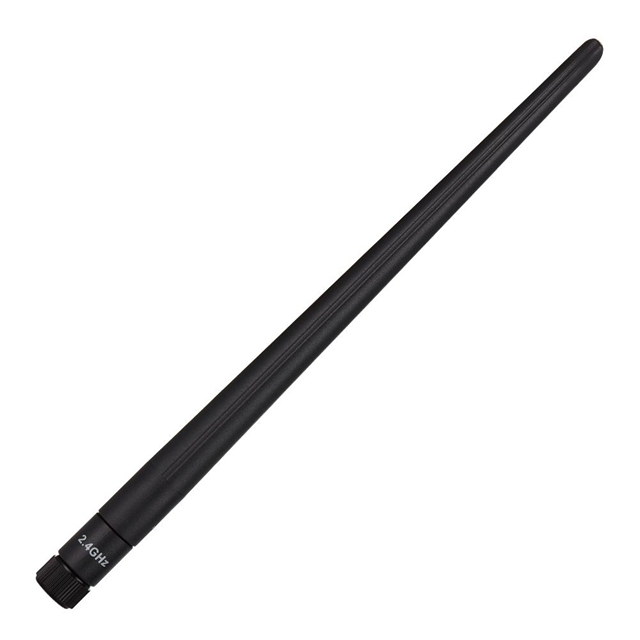

The Taoglas GW.34.5153 is a dipole antenna designed for the 2.4 GHz ISM band, specifically targeting Wi-Fi applications. It features a mechanical whip style with a tilt capability and an RP-SMA male connector for mounting. The antenna provides a gain of 5 dBi and operates within a frequency range of 2.4 GHz to 2.5 GHz. It has a maximum power handling capacity of 10 W and a height of approximately 198 mm. The unit is packaged in a bag and is currently active.

Antennas RF Feature Summary

• Tilt-adjustable whip design for optimized signal orientation
• RP-SMA male connector for secure interface attachment
• Dipole configuration supporting 2.4 GHz Wi-Fi standards

Antennas RF Applications

• Wi-Fi terminal mounting
• Wireless LAN infrastructure
• Industrial IoT gateways

Antennas RF Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation to ensure compliance with current specifications. Confirm that the RP-SMA male termination matches the receiving equipment interface requirements. Check for any recent product change notices regarding material or dimensional updates before finalizing procurement orders.

Antennas RF Selection Notes

Select this component when a directional whip antenna with adjustable tilt is required for 2.4 GHz operations. Ensure the installation environment accommodates the 198 mm height and allows for physical adjustment of the whip angle. Verify that the 10 W power rating exceeds the transmitter output to prevent damage during operation.

Antennas RF Part Context

This model belongs to the GW series of external antennas from Taoglas Limited. It complements other dipole and whip variants by offering a specific tilt mechanism suitable for fixed installations where signal directionality needs manual optimization. It serves as a dedicated solution for Wi-Fi bands distinct from multi-band cellular or GNSS offerings.

Antennas RF Replacement Considerations

Consider the GW.22.5151 for similar 2.4 GHz performance if a straight whip without tilt functionality is acceptable. Verify connector polarity and impedance matching when substituting with other Taoglas dipole models to maintain system integrity.
