GW.40.2153

Antennas RF Overview

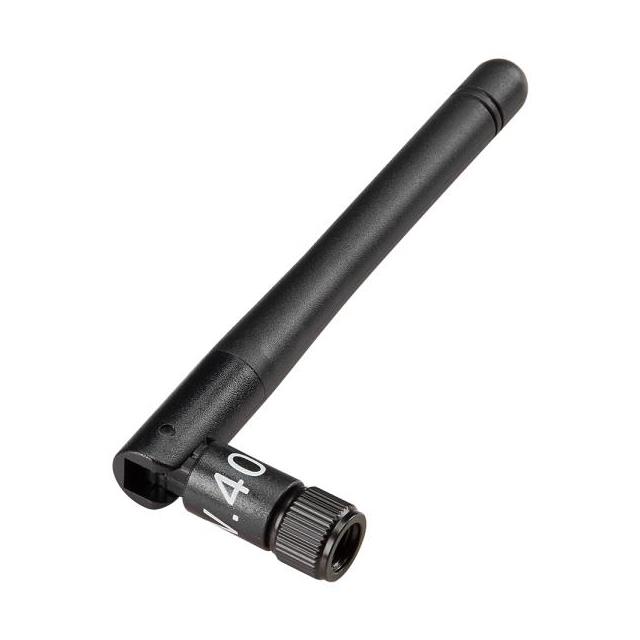

The Taoglas GW.40.2153 is a dual-band dipole antenna designed for terminal mounting applications. It operates across the 2.4 GHz and 5.0–5.8 GHz frequency ranges, supporting Wi-Fi standards. The component features an RP-SMA male connector with a 90-degree hinged design for flexible installation. Key electrical specifications include a maximum operating temperature of +85°C, an impedance of 50 Ohms, and an IP65 ingress protection rating. The antenna provides a gain of approximately 2 dBi to ensure reliable signal reception and transmission in wireless network environments.

Antennas RF Feature Summary

• Dual-band operation covering 2.4 GHz and 5.0–5.8 GHz frequencies for versatile wireless connectivity
• RP-SMA male connector interface with a 90-degree hinged mechanism for optimized spatial positioning
• IP65 rated enclosure providing robust protection against dust and water jets for durable deployment
• Terminal mount design suitable for fixed integration into access points or gateway hardware

Antennas RF Applications

• Wireless LAN (WLAN) access point integration
• Wi-Fi router and gateway external antenna replacement
• Industrial wireless communication nodes requiring environmental sealing
• Enterprise network infrastructure expansion

Antennas RF Procurement Notes

Verify that the RP-SMA male connector type matches the receiving equipment port configuration before procurement. Confirm that the 90-degree hinge orientation aligns with the physical constraints of the target mounting location. Ensure the host device supports the specified dual-band frequency ranges for optimal performance. Check that the IP65 rating meets the environmental requirements of the intended installation site. Validate compatibility with the specific Wi-Fi standards required by the network architecture.

Antennas RF Selection Notes

Select this model when a ruggedized, externally mounted solution is required for dual-band Wi-Fi networks. The hinged connector design offers flexibility for directing signal coverage in complex layouts. Consider this part for installations where weather resistance is critical due to the IP65 rating. It serves as a direct replacement for standard dipole antennas in compatible routers and access points. Evaluate the gain characteristics against the required coverage area and interference levels.

Antennas RF Part Context

This component belongs to the Taoglas GW.40 series, which specializes in dual-band Wi-Fi dipole antennas. The series is engineered for terminal mounting applications in both commercial and industrial settings. These antennas are designed to enhance wireless signal integrity for devices utilizing 2.4 GHz and 5 GHz bands. The product line emphasizes durability and ease of installation through standardized connectors and robust housing materials.

Antennas RF Replacement Considerations

Ensure the substitute maintains the RP-SMA male connector interface for mechanical fit. Verify that the new component supports the same 2.4 GHz and 5.0–5.8 GHz frequency bands. Confirm that the gain and radiation pattern meet the original system's coverage requirements. Check that the ingress protection rating is equal to or exceeds IP65 if used in harsh environments.
