GW.48.A151 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is 2.4 / 5.8GHZ DUAL BAND 3-3.5DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GW.48.A151
- Description：2.4 / 5.8GHZ DUAL BAND 3-3.5DBI
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：-
- Frequency Group：-
- Frequency (Center/Band)：-
- Frequency Range：-
- Antenna Type：-
- Number of Bands：-
- VSWR：-
- Return Loss：-
- Gain：-
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Height (Max)：-
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for GW.48.A151
Antennas RF Overview

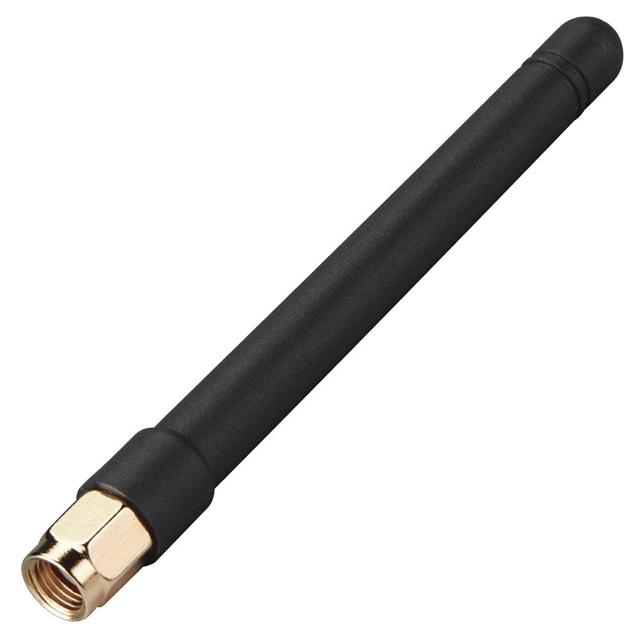

The Taoglas GW.48.A151 is a compact, flexible rubber duck dipole antenna designed for Bluetooth and Wireless LAN applications. It operates across multiple frequency bands including UHF (2GHz to 3GHz) and SHF (above 4GHz), specifically covering 2.4GHz, 5.8GHz, and 7.125GHz ranges. The component features an RP-SMA male connector and maintains a 50Ω impedance with a maximum input power rating of 2W. Constructed with an IK05 rated TPEE enclosure, it offers IP67 ingress protection and UV resistance. The antenna exhibits peak gains of approximately 3.5 dBi at 2.4GHz and 3 dBi at 5.8GHz, with a total height of 89.5mm.
Antennas RF Feature Summary
- IP67 rated flexible TPEE enclosure providing impact resistance and UV durability
- Multi-band operation supporting Bluetooth and Wireless LAN networks
- Compact form factor suitable for space-constrained wireless applications
Antennas RF Applications
- Bluetooth network connectivity devices
- Wireless LAN (WLAN) infrastructure
- IoT modules requiring robust environmental sealing
Antennas RF Procurement Notes
Verify the specific ordering suffix to ensure the correct connector type and cable length match your system requirements. Confirm that the RP-SMA male interface aligns with your host device's mating connector. Check datasheet specifications for operating temperature range and gain values relative to your specific frequency band of interest to ensure compliance with regulatory and performance standards.
Antennas RF Selection Notes
Select this model when high environmental protection (IP67) and mechanical durability (IK05) are required for outdoor or industrial deployments. The multi-band capability supports simultaneous or switching operations across 2.4GHz, 5.8GHz, and 7.125GHz frequencies. Consider the 89.5mm height constraint and the need for a flexible, UV-resistant housing in your design phase.
Antennas RF Part Context
This component belongs to the Taoglas GWx series of dipole antennas, which are engineered for compact wireless solutions. The series typically utilizes flexible materials to withstand physical stress while maintaining consistent RF performance across various industrial and consumer electronics applications.
Antennas RF Replacement Considerations
Consult official Taoglas documentation for direct substitutes. Ensure any replacement matches the RP-SMA connector, 50Ω impedance, and IP67 rating. Verify frequency coverage compatibility for all target bands.
