GW.48.A151W

Antennas RF Overview

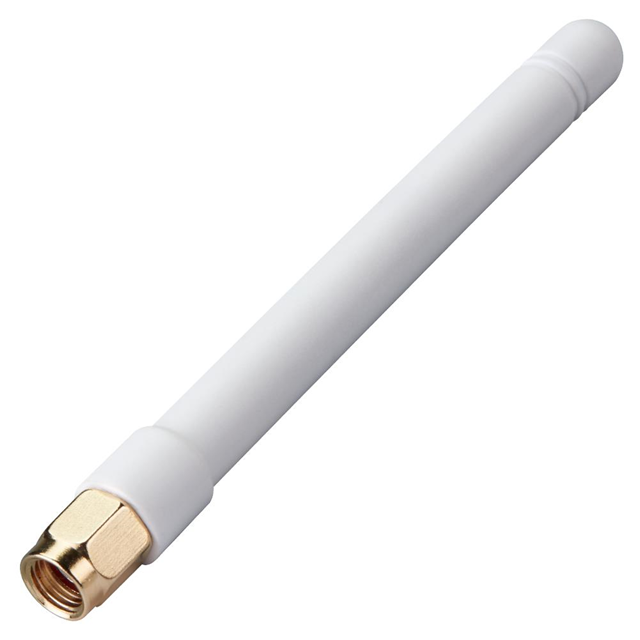

The GW.48.A151W is a dual-band whip antenna by Taoglas Limited, operating at 2.45 GHz and 5.5 GHz. It provides gains of 3.42 dBi and 4.56 dBi respectively, with return losses of -10 dB and -7 dB. The antenna features an RP-SMA male connector and a white rubber duck design. It supports frequencies from 2.4 to 2.5 GHz and 5.15 to 5.85 GHz, ensuring reliable impedance matching for wireless applications.

Antennas RF Feature Summary

• Dual-band operation supporting 2.4 GHz and 5.5 GHz bands
• RP-SMA male connector for secure attachment
• White rubber duck whip design for durability

Antennas RF Applications

• Wireless LAN connectivity
• Bluetooth device integration
• Indoor and outdoor wireless installations

Antennas RF Procurement Notes

Verify the specific frequency band requirements against the datasheet before procurement. Confirm that the RP-SMA male connector matches the host equipment interface. Ensure the environmental rating meets the installation conditions. Cross-reference the part number suffix to confirm the color variant and connector type are correct for the intended application.

Antennas RF Selection Notes

Select this antenna when dual-band performance at 2.4 GHz and 5.5 GHz is required. The high gain values support extended range applications. The IP67 rated enclosure option in the series allows for harsh environment use. Consider the physical dimensions and mounting style to ensure compatibility with the device chassis or enclosure design constraints.

Antennas RF Part Context

This component belongs to the GW series of antennas from Taoglas Limited. The series includes various configurations for different wireless standards. The GW.48.A151W specifically targets dual-band wireless applications requiring robust performance. It complements other models in the lineup offering single-band or tri-band capabilities.

Antennas RF Replacement Considerations

Check for direct substitutes within the GW series that offer similar gain and connector types. Verify that any replacement maintains the same RP-SMA male interface. Ensure the alternative model supports the required 2.4 GHz and 5.5 GHz frequency ranges without compromising impedance matching.
