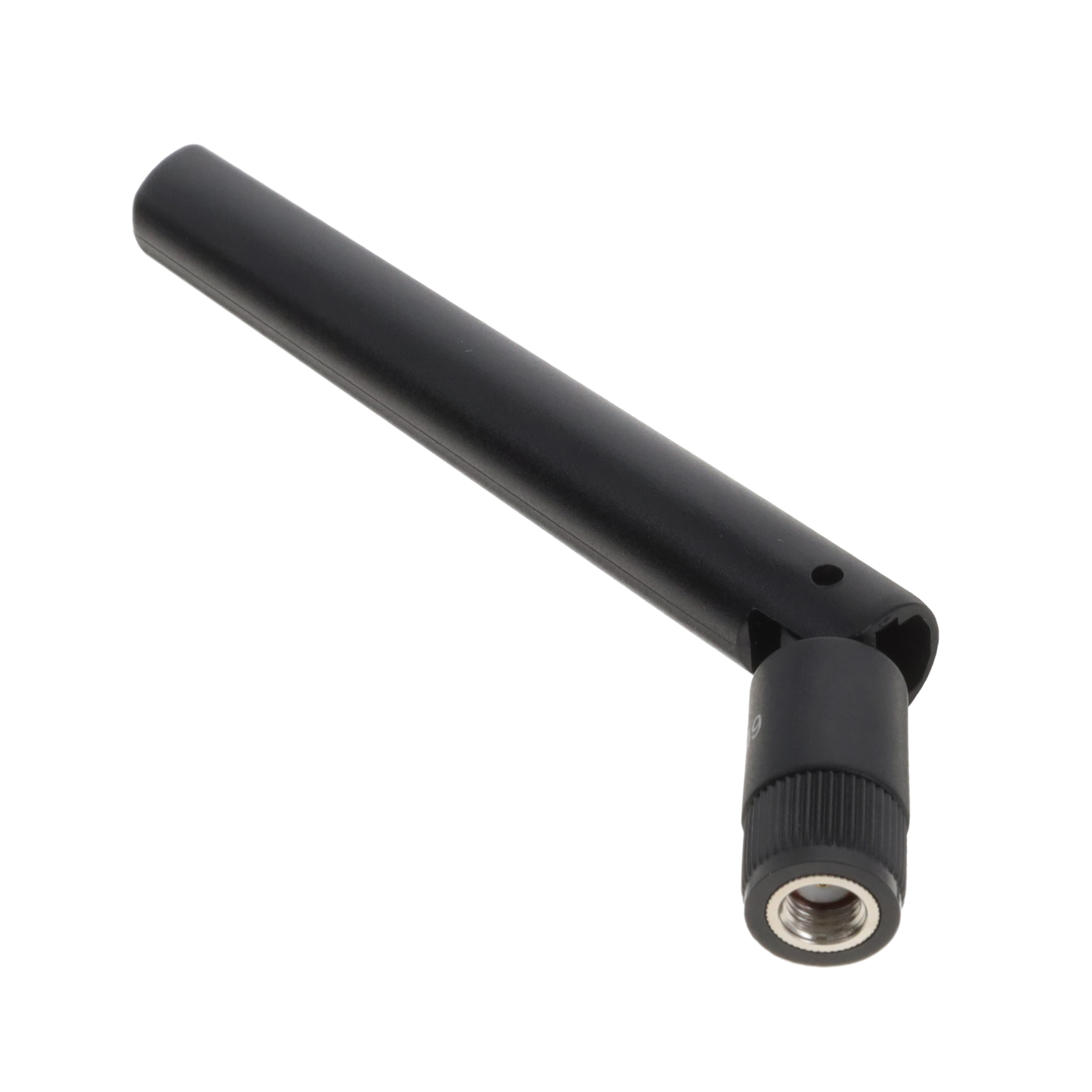

GW.49.A153 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is WATERPROOF 2.4/5-7.125GHZ DIPOLE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GW.49.A153
- Description：WATERPROOF 2.4/5-7.125GHZ DIPOLE
- Series：-
- Mfr：Taoglas Limited
- Package：Bulk
- RF Family/Standard：WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.45GHz, 5.375GHz, 6.525GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：Whip, Straight
- Number of Bands：3
- VSWR：-
- Return Loss：-
- Gain：2.58dBi, 3.8dBi, 1.54dBi
- Features：-
- Termination：RP-SMA Male
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：4.870" (123.70mm)
- Applications：Wi-Fi
- Power - Max：-
