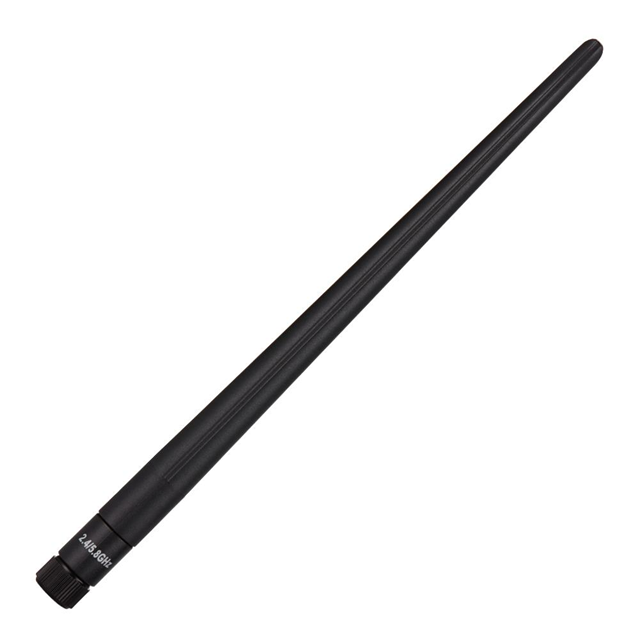

GW.51.5153

$11.42

Description：RF ANT 2.45/5.375GHZ WHIP TILT
Series：-
Mfr：Taoglas Limited
Package：Bag

SKU:6447aa4d8dab Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GW.51.5153 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 2.45/5.375GHZ WHIP TILT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GW.51.5153

Description：RF ANT 2.45/5.375GHZ WHIP TILT
Series：-
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.375GHz
Frequency Range：2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz
Antenna Type：Whip, Tilt
Number of Bands：2
VSWR：-
Return Loss：-
Gain：3.14dBi, 6.12dBi, 3.08dBi, 3.98dBi
Features：-
Termination：RP-SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：7.795" (198.00mm)
Applications：Wi-Fi
Power - Max：1 W

Antennas RF datasheet and documents for GW.51.5153

GW.51.5153

Antennas RF Overview

The Taoglas GW.51.5153 is a terminal mount dipole antenna designed for dual-band Wi-Fi operations at 2.4GHz and 5.8GHz. It features an omnidirectional radiation pattern with high efficiency and gain, specifically rated at 5dBi. The physical dimensions include a height of 198mm and a diameter of 13mm. This component supports Bluetooth, BLE, WiFi 6, WiFi 7, WLAN, and ZigBee protocols.

Antennas RF Feature Summary

Dual-band operation supporting 2.4GHz and 5.8GHz frequencies
Omnidirectional radiation pattern for consistent coverage
Terminal mount design with dipole configuration

Antennas RF Applications

Wi-Fi connectivity systems
Bluetooth and BLE networks
WLAN infrastructure
ZigBee applications

Antennas RF Procurement Notes

Verify the specific frequency range and connector type against the official datasheet before procurement. Confirm mechanical mounting requirements align with the 198mm height and 13mm diameter specifications. Ensure compatibility with the intended RF protocol standards such as WiFi 6 or ZigBee.

Antennas RF Selection Notes

Select this model for applications requiring a compact terminal mount solution with dual-band support. Consider the physical size constraints due to the 198mm height. Verify that the required gain and radiation pattern meet the coverage needs for the specific deployment environment.

Antennas RF Part Context

This antenna belongs to the Taoglas GW.51 series, which focuses on advanced IoT components and wireless connectivity solutions. The series provides precision-engineered antennas for complex connectivity challenges across various industries including smart cities and industrial automation.
