GW.53.A151 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is 2.4/5.8GHZ DIPOLE ANTENNA RP-SMA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GW.53.A151
- Description：2.4/5.8GHZ DIPOLE ANTENNA RP-SMA
- Series：*
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：-
- Frequency Group：-
- Frequency (Center/Band)：-
- Frequency Range：-
- Antenna Type：-
- Number of Bands：-
- VSWR：-
- Return Loss：-
- Gain：-
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Height (Max)：-
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for GW.53.A151
Antennas RF Overview

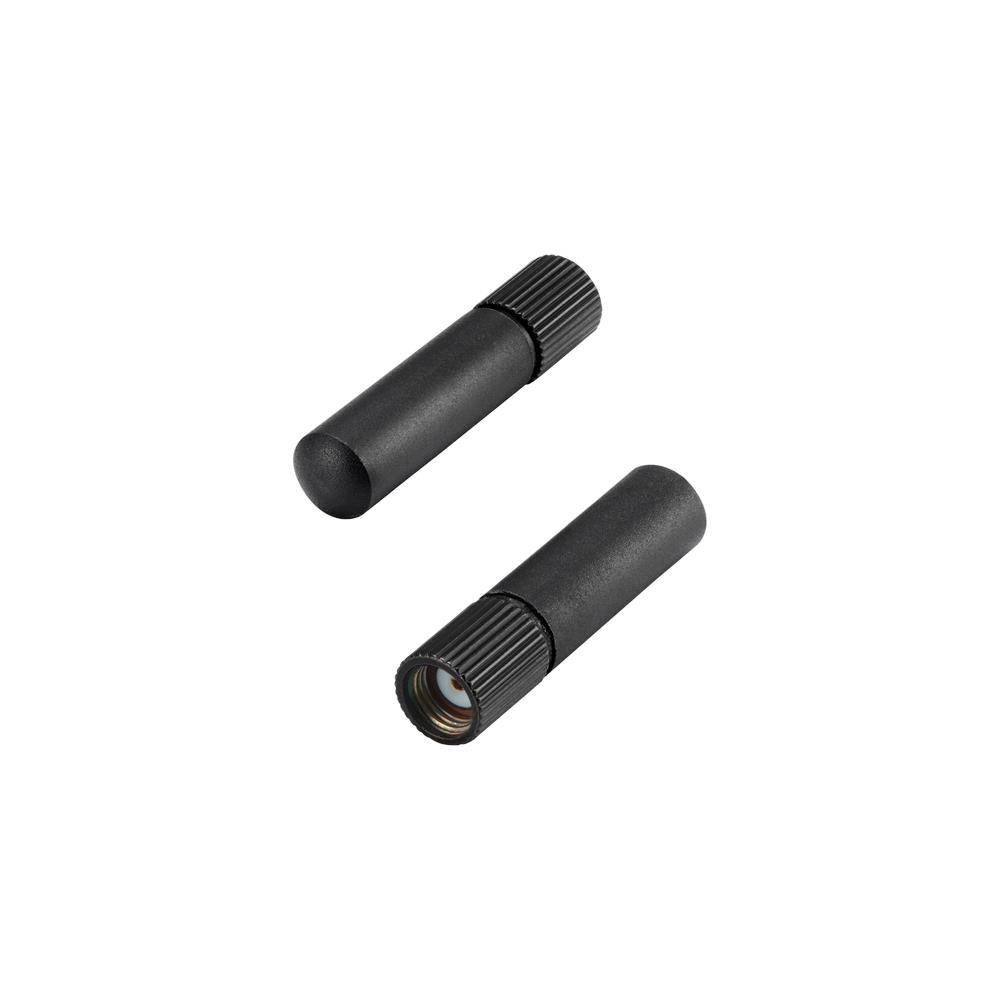

The Taoglas GW.53.A151 is a terminal-mount dipole antenna designed for Bluetooth, BLE, ZigBee, and Wi-Fi 6/7 applications. It operates across 2.4GHz, 5.8GHz, and 7.125GHz bands with an impedance of 50 Ohms. The unit features an IP67 rating for waterproof outdoor use and includes an RP-SMA male connector. Physical dimensions include a length of 35.8 mm and a maximum operating temperature of +85°C.
Antennas RF Feature Summary
- IP67 rated enclosure for extreme outdoor IoT applications
- Compact super small form factor design
- Terminal-mount configuration with RP-SMA male connector
Antennas RF Applications
- Bluetooth and BLE wireless connections
- ZigBee network implementations
- Wi-Fi 6 and Wi-Fi 7 deployments
- Wireless LAN (WLAN) systems
Antennas RF Procurement Notes
Verify the specific datasheet version to confirm exact gain values and frequency ranges, as documentation may vary. Ensure the RP-SMA male connector interface matches the host device port. Confirm environmental ratings align with installation requirements. Check lead times due to potential manufacturing delays.
Antennas RF Selection Notes
Select this model for applications requiring high ingress protection in harsh environments. The terminal-mount style suits fixed installations where space is limited. Consider the 6.51 dBi gain for extended range needs. Verify compatibility with 2.4GHz, 5.8GHz, or 7.125GHz bands depending on the target protocol.
Antennas RF Part Context
This component belongs to the GW.53 series of terminal antennas from Taoglas. The series offers lightweight, compact solutions for wireless connectivity. Similar models like GW.48.A151 provide alternative band options. The GW.53 specifically targets dual-band Wi-Fi and Bluetooth markets with robust physical construction.
Antennas RF Replacement Considerations
No direct public substitute part numbers are confirmed. Evaluate similar terminal-mount antennas with matching IP67 ratings and RP-SMA connectors. Ensure replacement units support the required 2.4GHz and 5.8GHz frequencies.
