GW.71.5153

Antennas RF Overview

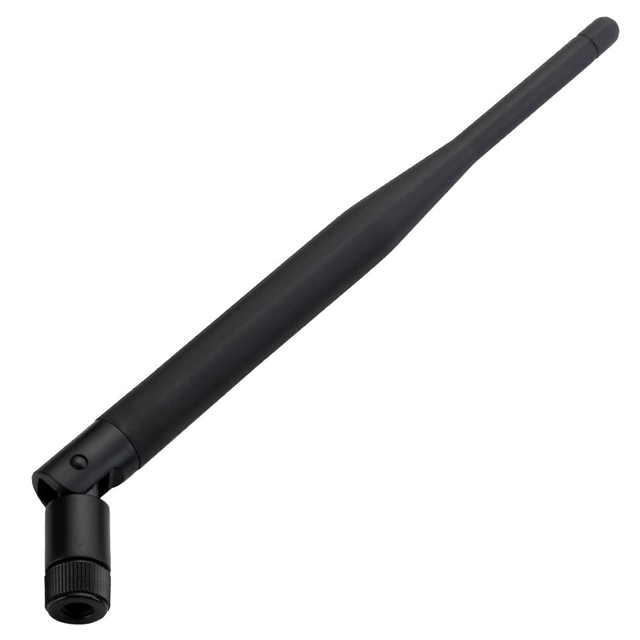

The GW.71.5153 is a hinged dipole antenna operating in the 2.4 GHz and 5.8 GHz ISM bands, designed for WLAN IEEE 802.11a/b/g applications. It features an RP-SMA (M) terminal mount connector and linear polarization. The unit provides a gain of 5 dBi with a maximum VSWR of 2.1 at 50 Ohms impedance. Constructed with a durable TPE housing, it measures 194 mm in length and supports a maximum operating temperature of +85°C.

Antennas RF Feature Summary

• Hinged dipole design for flexible positioning
• RP-SMA male terminal mount connector
• Dual-band operation covering 2.4 GHz and 5.8 GHz ISM frequencies

Antennas RF Applications

• WLAN IEEE 802.11a/b/g systems
• ISM band wireless communication devices
• Terminal mount RF links requiring directional gain

Antennas RF Procurement Notes

Verify that the RP-SMA (M) connector type matches the receiving equipment interface. Confirm mechanical clearance for the 194 mm whip length and hinge articulation range during installation. Ensure environmental conditions remain within the specified +85°C maximum operating temperature limit to maintain performance integrity.

Antennas RF Selection Notes

Select this model when a fixed-mount solution requires adjustable orientation via a hinge mechanism. It is suitable for applications needing higher gain than standard omnidirectional antennas without requiring external cabling runs. Consider the physical footprint and mounting hardware compatibility before integration into the final enclosure design.

Antennas RF Part Context

This component belongs to the Taoglas GW.71 series, which specializes in ruggedized whip and dipole antennas for industrial and commercial wireless deployments. The series emphasizes durability through TPE housing materials and reliable connectivity options for harsh environments.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
