GW.82.5153

Antennas RF Overview

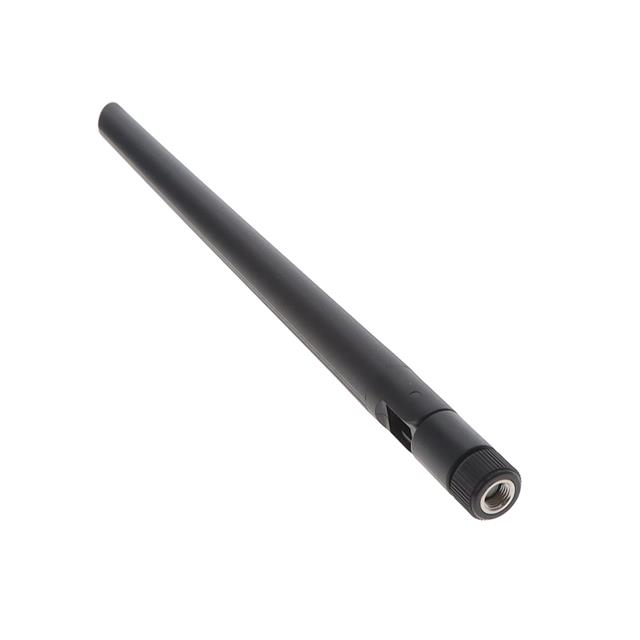

The Taoglas Limited GW.82.5153 is a tilt whip RF antenna designed for the 5.15GHz to 5.85GHz frequency range, centered at 5.5GHz. It operates within the SHF group and supports Wi-Fi standards. The component features an RP-SMA male connector mount interface. Technical specifications include gain values of 5.64dBi and 6.53dBi, with a maximum power rating of 1W.

Antennas RF Feature Summary

• Tilt whip design for flexible orientation
• RP-SMA male connector interface
• Optimized for 5.15GHz to 5.85GHz Wi-Fi bands

Antennas RF Applications

• Wi-Fi connectivity systems
• Wireless local area network (WLAN) devices
• Industrial wireless communication equipment

Antennas RF Procurement Notes

Verify the specific datasheet version for the GW.82.5153 to confirm mechanical dimensions and connector pinout details. Ensure compatibility with RP-SMA female ports on the host device. Check RoHS compliance status against current regulatory requirements for the target market before finalizing procurement orders.

Antennas RF Selection Notes

Select this antenna when a compact tilt whip form factor is required for high-frequency Wi-Fi applications. The RP-SMA male connection simplifies integration into enclosures with standard female receptacles. Consider the 1W power handling limit when designing for high-output transmitter environments to prevent component damage.

Antennas RF Part Context

This component belongs to the Taoglas RF and Wireless portfolio, specifically categorized under antennas. It serves as a specialized solution for short-range wireless data transmission in the super-high frequency band, complementing broader cellular and GNSS antenna offerings from the manufacturer.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must verify electrical and mechanical compatibility if considering alternative suppliers or different model numbers from other manufacturers.
