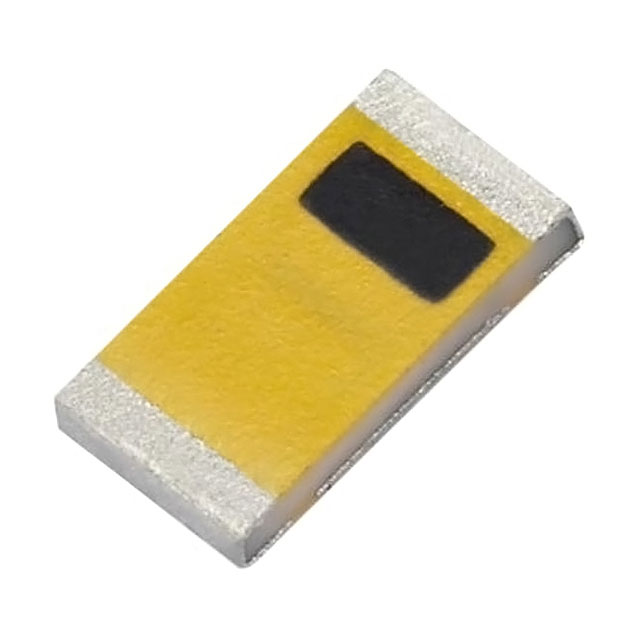

GWLA.10 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 1.575GHZ/2.4GHZ CHIP SLD. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GWLA.10
- Description：RF ANT 1.575GHZ/2.4GHZ CHIP SLD
- Series：-
- Mfr：Taoglas Limited
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：802.15.4, Bluetooth, Navigation, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：1.575GHz, 2.4GHz, 5.5GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz
- Antenna Type：Chip
- Number of Bands：3
- VSWR：-
- Return Loss：-10dB
- Gain：1.8dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.020" (0.50mm)
- Applications：Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™
- Power - Max：2 W
Antennas RF datasheet and documents for GWLA.10
