GWLA.15

Antennas RF Overview

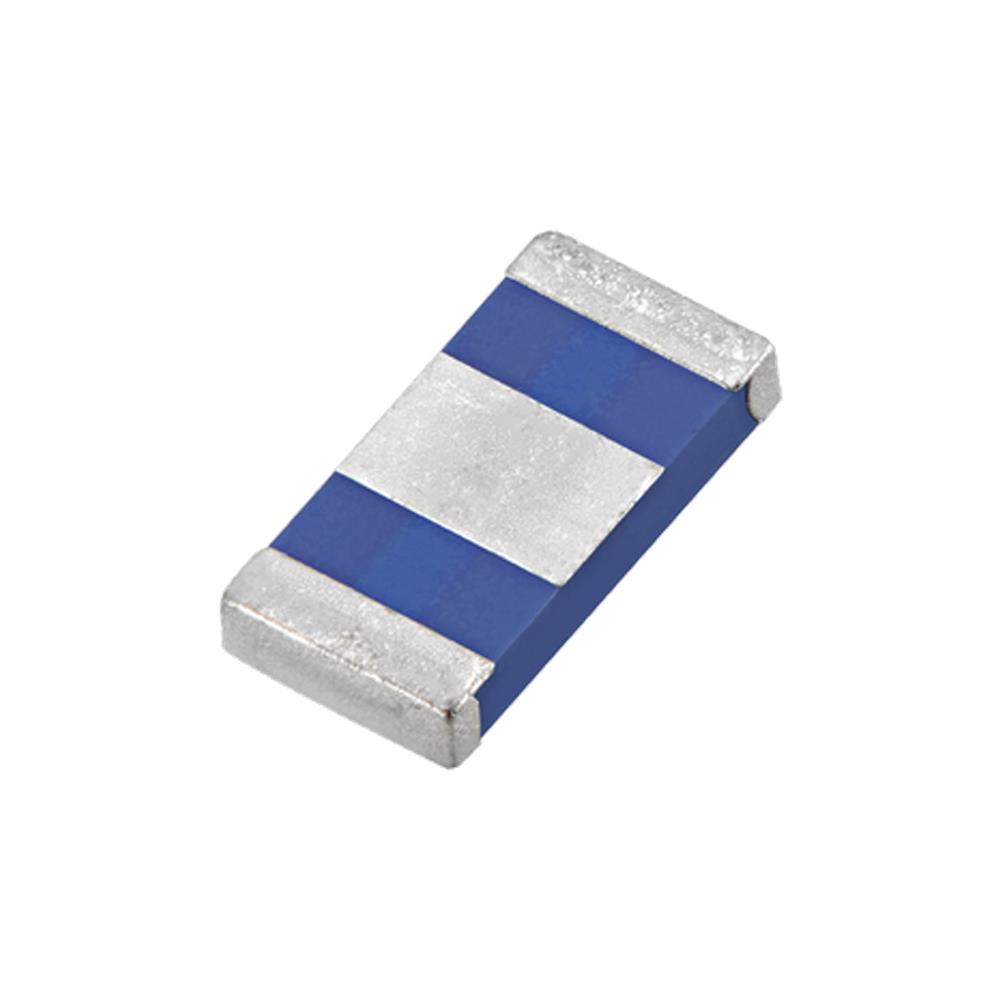

The GWLA.15 is a miniature ceramic loop antenna designed for multi-band GNSS and wireless applications. It supports GPS, Galileo, BeiDou, Wi-Fi, WLAN, Zigbee, Bluetooth, and 802.11ac protocols. The device operates within a frequency range of 1.559 GHz to 1.61 GHz for navigation bands and covers 2.4 GHz and 5.8 GHz for wireless standards. It features a surface-mount (SMD) PCB installation style with linear polarization. The antenna is engineered for high efficiency in space-constrained environments.

Antennas RF Feature Summary

• Supports simultaneous reception of GPS, Galileo, BeiDou, GLONASS, Wi-Fi, WLAN, Zigbee, Bluetooth, and 802.11ac signals
• Utilizes a compact ceramic loop structure optimized for edge-mounted or surface-mount integration
• Designed for high-efficiency performance in miniature form factors

Antennas RF Applications

• Navigation systems
• Position tracking systems
• IoT devices requiring multi-protocol connectivity

Antennas RF Procurement Notes

Verify current availability status as the component may be subject to end-of-life transitions due to supplier challenges. Confirm if the manufacturer recommends substituting with alternative portfolio models such as the GWLA.01. Ensure compliance with RoHS and REACH-SVHC requirements before procurement. Cross-reference datasheet specifications against design-in requirements to confirm compatibility with target RF circuits.

Antennas RF Selection Notes

Select this component for designs requiring integrated GNSS and short-range wireless capabilities in a single footprint. Evaluate spatial constraints as the unit is a miniature chip antenna. Consider the specific frequency ranges required by the application to ensure coverage of all necessary protocols. Verify that the SMD mounting method aligns with the assembly process and PCB layout guidelines provided in the official documentation.

Antennas RF Part Context

The GWLA.15 belongs to Taoglas' portfolio of passive PCB antennas. It is categorized under GNSS and wireless multi-band solutions. The product line focuses on providing efficient signal reception for modern communication standards while maintaining a small physical profile suitable for portable and embedded electronics.

Antennas RF Replacement Considerations

Public documentation indicates the GWLA.15 is due for replacement due to supplier challenges. The manufacturer suggests considering the GWLA.01 as an alternative product within the Taoglas portfolio. Engineers should verify technical compatibility and performance metrics between these models before substitution.
