GWSFTP.50.3.A.08

$26.53

Description：GPS L1 & WI-FI SINGLE FEED 50MM
Series：-
Mfr：Taoglas Limited
Package：Tray,Tray

SKU:27c82c5c2145 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

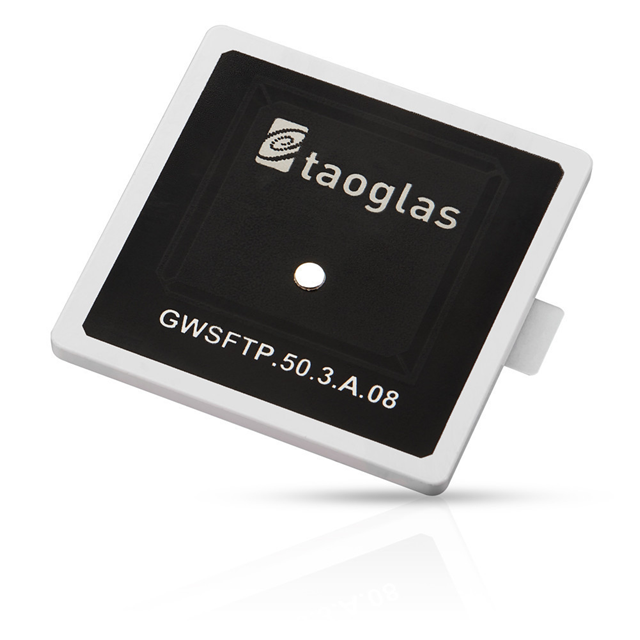

GWSFTP.50.3.A.08 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is GPS L1 & WI-FI SINGLE FEED 50MM. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GWSFTP.50.3.A.08

Description：GPS L1 & WI-FI SINGLE FEED 50MM
Series：-
Mfr：Taoglas Limited
Package：Tray,Tray
RF Family/Standard：Navigation, WiFi
Frequency Group：UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：1.575GHz, 2.45GHz
Frequency Range：1.574GHz ~ 1.576GHz, 2.4GHz ~ 2.5GHz
Antenna Type：Ceramic Patch
Number of Bands：2
VSWR：-
Return Loss：-7dB, -10dB
Gain：1.6dBi, 0.1dBi
Features：-
Termination：Pin
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.118" (3.00mm)
Applications：GPS, Wi-Fi
Power - Max：-

Antennas RF datasheet and documents for GWSFTP.50.3.A.08

GWSFTP.50.3.A.08

Antennas RF Overview

The GWSFTP.50.3.A.08 is a ceramic patch pin antenna manufactured by Taoglas Limited, designed for GPS and Wi-Fi applications. It operates within a frequency range of 1500 MHz to 2600 MHz, with a maximum operating frequency of 2.5 GHz. The component features a 50 Ohm impedance and measures 50 mm in length, 3 mm in height, and 3 mm in width. It provides a typical gain of -6.1 dBi and utilizes adhesive mounting for secure installation.

Antennas RF Feature Summary

Utilizes ceramic substrate construction for durability
Supports dual-band GPS and Wi-Fi connectivity
Features adhesive mounting mechanism

Antennas RF Applications

Transportation systems
Agriculture equipment
Defense platforms
Marine vessels
UAV operations

Antennas RF Procurement Notes

Verify the specific application requirements against the antenna's operational frequency range and physical dimensions before procurement. Confirm that the adhesive mounting method aligns with the target assembly constraints. Ensure compatibility with the intended GPS and Wi-Fi protocols. Cross-reference the impedance specifications with the system design to guarantee signal integrity. Validate environmental suitability for the deployment location.

Antennas RF Selection Notes

Select this model when compact, low-profile integration is required for GPS and Wi-Fi modules. Consider its adhesive mounting capability for applications where mechanical fasteners are impractical. Evaluate the -6.1 dBi gain performance against link budget requirements. Assess the 50 mm length constraint within the device enclosure. Verify compatibility with 50 Ohm transmission lines.

Antennas RF Part Context

This component belongs to the broader category of RF antennas produced by Taoglas Limited. It serves as a specialized solution for IoT and wireless connectivity challenges across various industries. The product line emphasizes precision engineering and reliability for market-ready solutions.
