GWX-100BSA3B

Antennas RF Overview

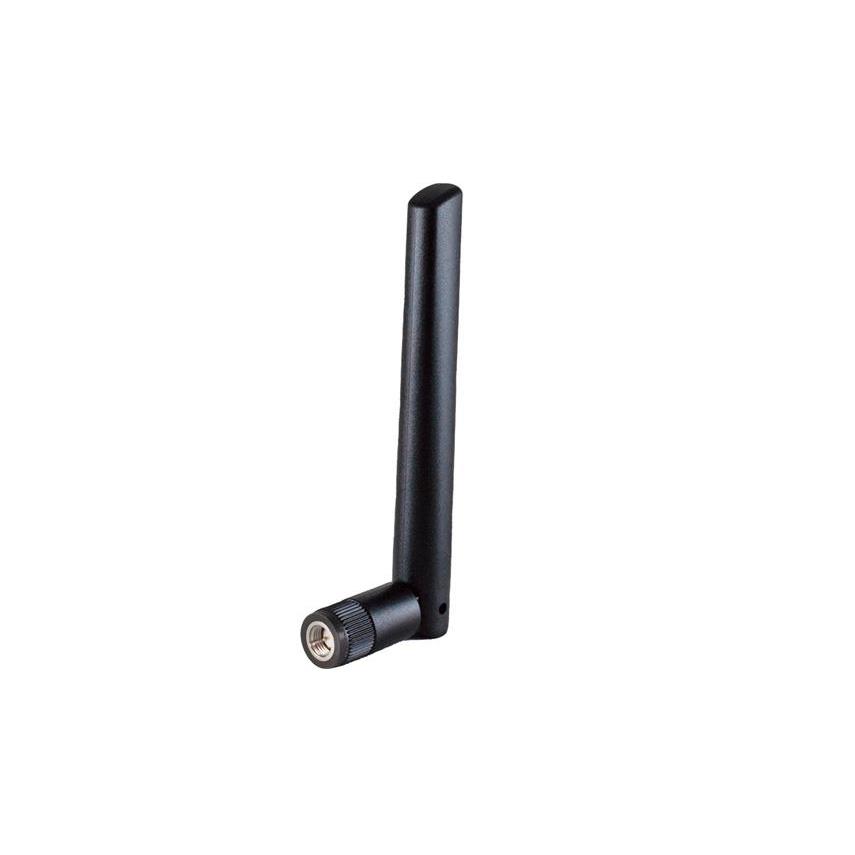

The GWX-100BSA3B is a sub-1 GHz tilt/swivel whip monopole antenna by Joymax Electronics. It operates in two frequency bands: 862 MHz to 876 MHz and 902 MHz to 930 MHz. The antenna provides a gain of 2.7 dBi in both bands with a maximum power handling of 1 W. It features an SMA plug male connector for installation. Voltage Standing Wave Ratio (VSWR) values are 1.6 and 1.7, while return loss is -12.7 dB and -11.7 dB respectively. The physical height is 46.00 mm.

Antennas RF Feature Summary

• Tilt and swivel mechanical design for directional optimization
• Monopole whip structure optimized for Sub-1 GHz ISM applications
• Dual-band operation supporting 868 MHz and 915 MHz regions

Antennas RF Applications

• LoRaWAN networks
• LPWA systems
• IoT sensor modules
• Sigfox devices

Antennas RF Procurement Notes

Verify the manufacturer part number GWX-100BSA3B against official Joymax Electronics documentation to ensure authenticity. Confirm that the SMA plug male interface matches the host device requirements. Check for any specific environmental ratings or mounting hardware included in the package. Ensure the supplier provides valid traceability documents. Validate that the component meets the required regulatory standards for the target deployment region.

Antennas RF Selection Notes

Select this antenna when dual-band Sub-1 GHz coverage is required for LPWA or IoT applications. The tilt/swivel feature allows for precise polarization alignment without rotating the entire device. Ensure the host system supports the 1 W maximum power rating. Verify that the SMA male connector is compatible with the PCB or cable assembly. Consider the 46 mm height constraint for enclosure design.

Antennas RF Part Context

This component belongs to the Joymax Electronics RF Antenna product line, specifically designed for low-power wide-area network implementations. It serves as a specialized solution for industrial and commercial IoT deployments requiring reliable Sub-1 GHz communication. The model is distinct from fixed-mount variants due to its adjustable orientation capabilities.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacements require matching the SMA plug interface, dual-band frequency ranges, and mechanical tilt/swivel specifications.
