GWX-180BSA2B

Antennas RF Overview

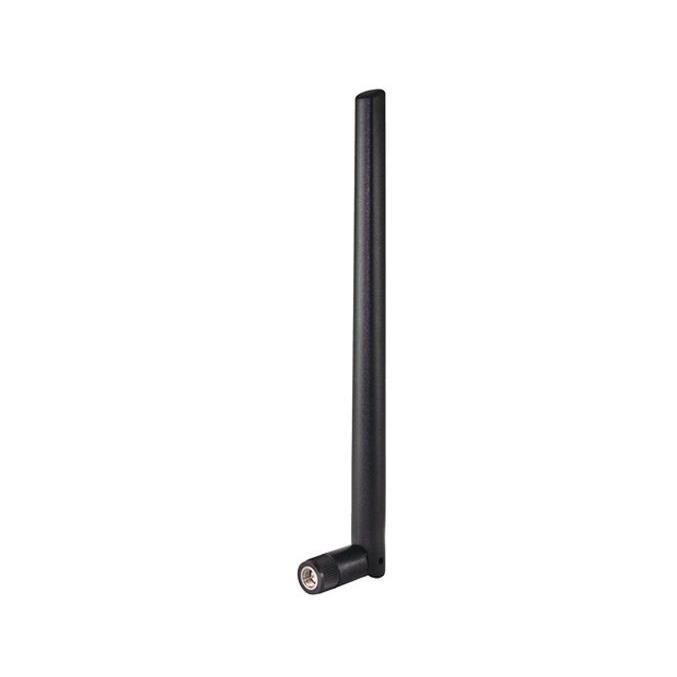

The GWX-180BSA2B is a whip antenna manufactured by Joymax Electronics, designed for operation at the 915 MHz frequency. It features an SMA plug male connector interface and exhibits a Voltage Standing Wave Ratio (VSWR) of 1.6 with a return loss of -12.7dB. The component belongs to the Series 180 product line and is categorized under RF antennas.

Antennas RF Feature Summary

• Whip-style antenna design
• SMA plug male connector interface

Antennas RF Applications

• LoRaWAN
• LPWA
• Sigfox
• Weightless-P™
• Wi-Fi HaLow™

Antennas RF Procurement Notes

Verify the manufacturer part number GWX-180BSA2B against official Joymax Electronics documentation to confirm specifications. Ensure compatibility with SMA plug male interfaces. Check standard lead times and availability through authorized distributors before procurement.

Antennas RF Selection Notes

Select this model for applications requiring a 915 MHz whip antenna with an SMA male connector. Consider the VSWR and return loss values for impedance matching requirements. Verify physical dimensions and mounting style suitability for the target device enclosure.

Antennas RF Part Context

This component is part of Joymax Electronics' Series 180 RF antenna lineup. The manufacturer specializes in IoT antennas and RF connectors, providing solutions for wireless design challenges. This specific model targets Sub-1 GHz ISM band applications.

Antennas RF Replacement Considerations

The GWX-180BSA1B is an alternative model operating at 868 MHz with identical connector and form factor specifications. Verify frequency requirements when considering substitution.
