GWX-241BSA3B

Antennas RF Overview

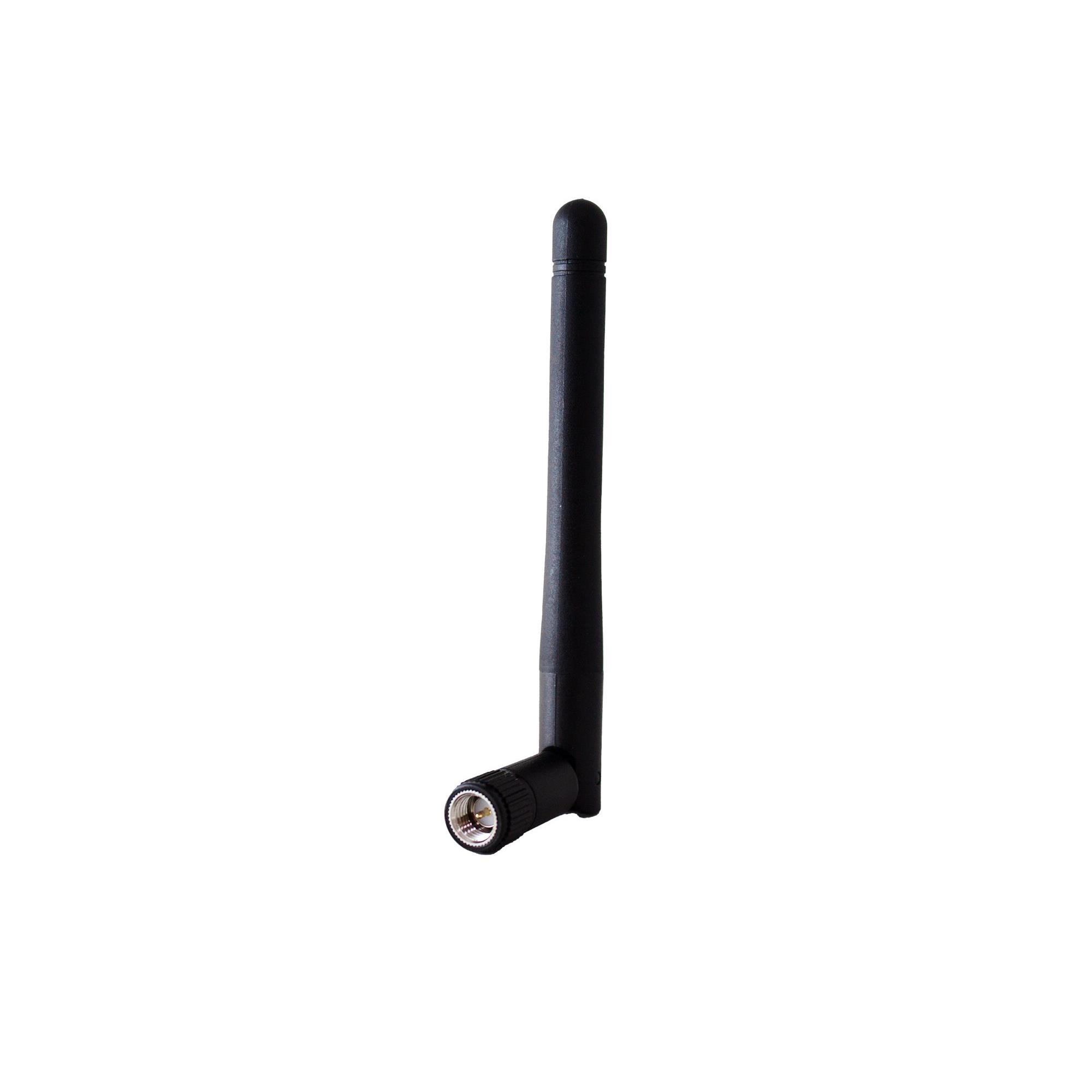

The GWX-241BSA3B is a sub-1 GHz LPWA whip antenna by Joymax Electronics, operating at 868MHz and 915MHz. It features an SMA male plug connector for direct device attachment. The antenna provides 2.7dBi gain with VSWR of 1.6 and 1.7 across its frequency bands. Maximum power handling is 1 W, with a maximum height of 46.00mm.

Antennas RF Feature Summary

• Whip-style monopole design optimized for low-power wide-area networks
• SMA male plug connector enables direct integration without additional cables
• Supports dual ISM frequency bands for global IoT compatibility

Antennas RF Applications

• LoRaWAN devices
• Sigfox networks
• Wi-Fi HaLow applications
• General ISM band equipment

Antennas RF Procurement Notes

Verify the specific suffix variant against official datasheets to ensure correct mechanical configuration. Confirm that the SMA male plug interface matches the host device port. Validate RoHS compliance status if required for regulatory adherence. Ensure the selected model supports the target regional frequency allocation.

Antennas RF Selection Notes

Choose this model for applications requiring direct connector mounting rather than PCB footprint integration. Select based on the need for a tilt/swivel form factor in external installations. Consider the 2.7dBi gain profile for moderate range requirements in LPWA deployments.

Antennas RF Part Context

This component belongs to Joymax's LPWA antenna portfolio designed for sub-1 GHz communications. It complements other series like GHX-328XSA3B, offering similar electrical performance but with distinct mechanical mounting options tailored for flexible system integration.

Antennas RF Replacement Considerations

GHX-328XSA3B offers identical electrical specifications but utilizes a different connector mount type. Verify mechanical clearance and interface compatibility before substitution.
