GZ1005E121TF

Chip Ferrite Bead Overview

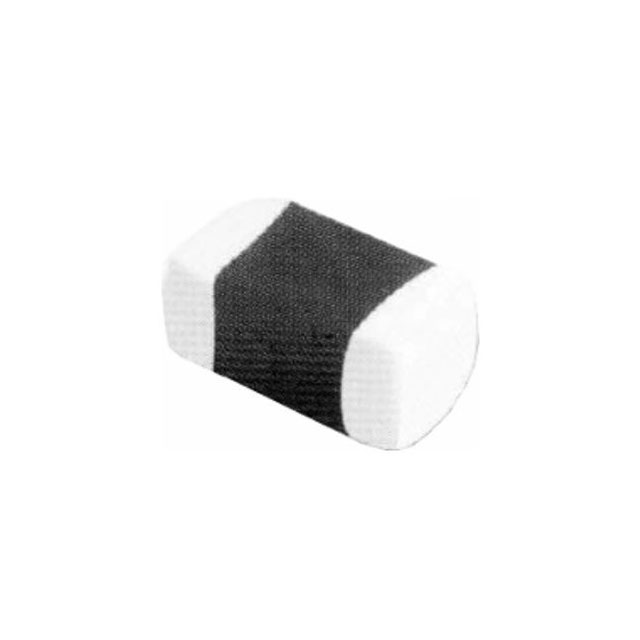

The GZ1005E121TF is a single-line multilayer chip ferrite bead manufactured by Shenzhen Sunlord Electronics Co., Ltd. It features an impedance of 120 Ohms at 100 MHz and a maximum DC resistance of 400 milliohms. The component supports a rated current of 200 mA and operates within a temperature range of -55°C to +125°C. Housed in a 0402 (1005 metric) surface-mount package with dimensions of 1.00mm x 0.50mm, it complies with RoHS3 standards and has a Moisture Sensitivity Level of 1.

Chip Ferrite Bead Feature Summary

• Multilayer ceramic construction for compact signal line filtering
• High impedance performance at 100 MHz for noise suppression
• Surface-mount design compatible with automated assembly processes

Chip Ferrite Bead Applications

• Signal line noise filtering in consumer electronics
• Power supply decoupling in portable devices
• EMI suppression in communication equipment

Chip Ferrite Bead Procurement Notes

Verify the specific suffix 'E' against official datasheets to confirm the 200mA rating and 400mOhm DCR specifications. Ensure compatibility with 0402 footprint requirements and check for RoHS3 compliance documentation prior to ordering. Confirm availability status as stock levels may vary.

Chip Ferrite Bead Selection Notes

Select this component when a 0402 footprint is required with a 120 Ohm impedance target at 100 MHz. The 200mA current rating suits low-power signal lines. Compare against the GZ1005D series if higher current handling or lower DC resistance is necessary for the specific circuit application.

Chip Ferrite Bead Part Context

This part belongs to the GZ series of multilayer chip ferrite beads from Sunlord. These components are designed for high-frequency noise suppression in small form factors. The series is widely used in mobile phones, tablets, and other compact electronic devices requiring effective EMI control without increasing board space.

Chip Ferrite Bead Replacement Considerations

GZ1005D121TF is listed as a parameter equivalent substitute.
