GZ1608D300TF

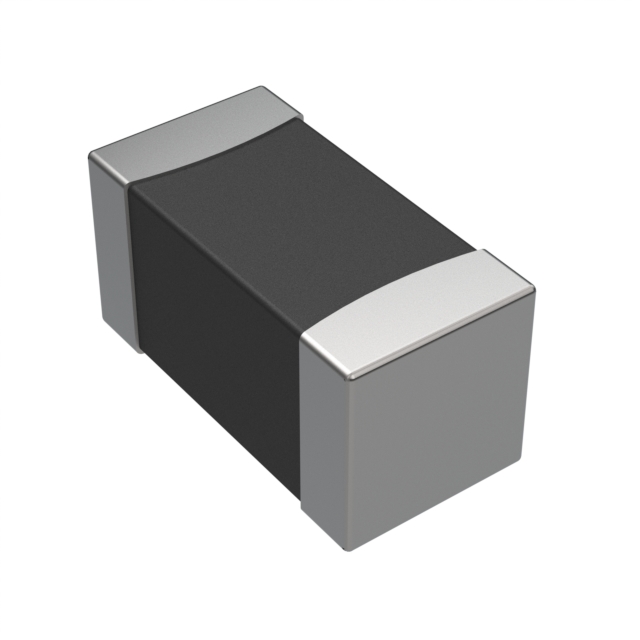

Chip Ferrite Bead Overview

The GZ1608D300TF is a single-channel multilayer chip ferrite bead manufactured by Shenzhen Sunlord Electronics Co., Ltd. It utilizes a 0603 (1608 Metric) surface-mount package designed for high-current applications. The component provides an impedance of 30Ω at 100MHz with a tolerance of ±25%. It supports a maximum rated current of 2A and features a maximum DC resistance of 50mΩ. The device operates within a temperature range of -55°C to +125°C.

Chip Ferrite Bead Feature Summary

• Multilayer structure providing effective electromagnetic interference suppression across wide frequency ranges
• High current handling capability suitable for power line filtering applications
• Compact 0603 footprint optimized for space-constrained printed circuit board layouts

Chip Ferrite Bead Applications

• Computer peripheral equipment signal line filtering
• Smart wearable device power management circuits
• General-purpose EMI suppression in consumer electronics

Chip Ferrite Bead Procurement Notes

Verify the manufacturer part number against official Sunlord documentation to ensure authenticity. Confirm that the specific lot code matches current production standards. Check for RoHS compliance markings on packaging if required by project specifications. Ensure storage conditions adhere to moisture sensitivity levels defined in the datasheet to maintain component reliability before soldering.

Chip Ferrite Bead Selection Notes

Select this component when a low-impedance path is required for high-current lines while maintaining noise attenuation at 100MHz. The 2A rating allows use in main power rails where lower-rated beads would saturate. The 50mΩ DCR minimizes voltage drop and power loss compared to higher-resistance alternatives. Consider thermal dissipation capabilities during PCB layout planning.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the GZ series from Sunlord, which offers various impedance values in standard metric packages. The GZ series is engineered for general electronic applications requiring reliable noise suppression. The 0603 size represents a balance between current capacity and board space efficiency within the company's passive component portfolio.

Chip Ferrite Bead Replacement Considerations

Cross-reference with other 0603 ferrite beads offering 30Ω @ 100MHz and ≥2A current ratings. Verify pin compatibility and physical dimensions match existing footprints. Ensure equivalent impedance curves and saturation characteristics align with circuit requirements before substitution.
