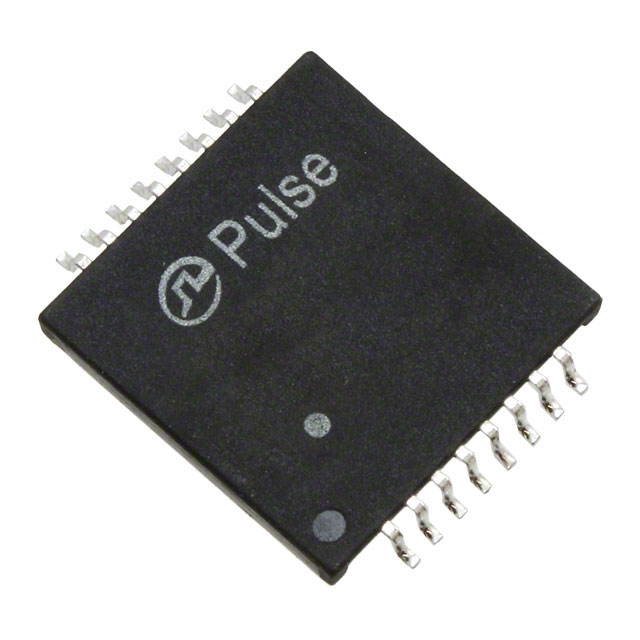

H0009

Description：MODULE PC CARD SNGL LAN 16PCMCIA
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:7eb69e9fe13e Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MODULE PC CARD SNGL LAN 16PCMCIA
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：LAN
Inductance：-
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.560" L x 0.560" W (14.22mm x 14.22mm)
Height - Seated (Max)：0.082" (2.08mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

H0009

Overview

The H0009 is a single LAN magnetic module designed for PCMCIA applications, manufactured by Pulse Electronics. It supports 10/100 Mbps Ethernet speeds and integrates magnetics for signal isolation and protection. The component is specified for operation within a temperature range of 0°C to 70°C. It utilizes a surface mount mounting method suitable for automated assembly processes. The module provides necessary impedance matching and common mode rejection for reliable data transmission in personal computer memory card international association (PCMCIA) interfaces.

Feature Summary

Integrates magnetics for 10/100BASE-TX LAN connectivity
Designed specifically for PCMCIA form factor applications
Provides electrical isolation and signal conditioning

Applications

PCMCIA network interface cards
Laptop expansion slots requiring integrated magnetics
Portable computing devices with 10/100 Ethernet capability

Procurement Notes

Verify the specific datasheet revision and mechanical dimensions against the target PCB footprint before procurement. Confirm that the operating temperature range meets the environmental requirements of the end application. Ensure compatibility with the intended PCMCIA slot specifications regarding pinout and electrical characteristics.

Selection Notes

Select this component when a compact, integrated magnetic solution is required for PCMCIA-based networking hardware. It eliminates the need for discrete transformer components, saving board space. Consider thermal performance and isolation voltage ratings if operating in high-interference environments or demanding industrial conditions.

Part Context

This part belongs to the family of 10/100 PC Card LAN Magnetics Modules produced by Pulse Electronics. These modules are engineered to meet industry standards for Ethernet connectivity in mobile computing platforms. They serve as critical interface components between the MAC layer and the physical medium.
