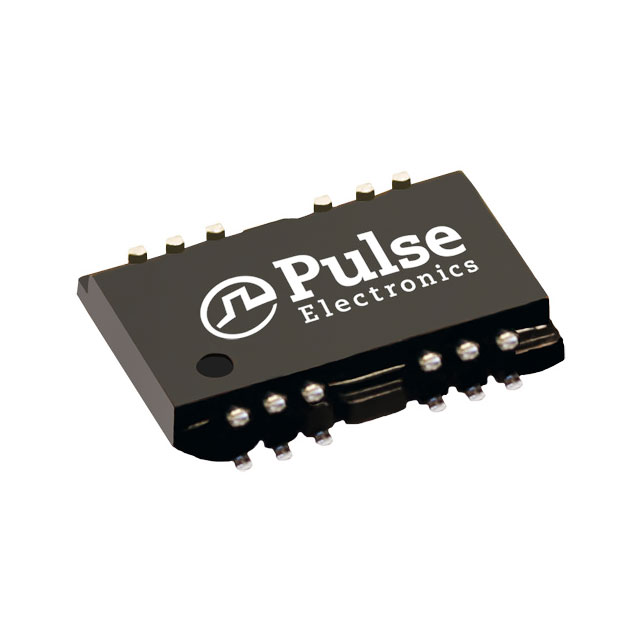

H0068ANL

Overview

The H0068ANL is a single-channel LAN transformer module designed for 10/100 Base-T applications. It features surface mount termination and operates within a frequency range of 100 kHz to 200 MHz. The component provides an inductance of 350 uH and supports an isolation voltage of 1.5 kV. It is rated for operation between -40°C and +105°C. Physical dimensions are 0.5 inches in length, 0.347 inches in width, and 0.082 inches in height.

Feature Summary

• Supports 10/100 Base-T Ethernet signaling
• Surface mount construction for automated assembly
• High insulation voltage capability

Applications

• 10/100 PC Card implementations
• Ethernet network interface circuits
• LAN magnetic modules

Procurement Notes

Verify the specific datasheet version for the H0068ANL to confirm exact electrical tolerances and mechanical footprint details. Ensure compatibility with RoHS requirements and check for any recent product change notices that may affect performance or availability. Cross-reference with official Pulse Electronics documentation for accurate pinout and mounting specifications.

Selection Notes

Select this component for designs requiring a compact, single-port solution for 10/100 Mbps Ethernet connections. Consider the operating temperature range and physical size constraints when integrating into portable or space-limited devices. Verify that the isolation voltage meets the safety requirements of the target application environment.

Part Context

This part belongs to the HX series of LAN transformers from Pulse Electronics. These modules are engineered for high reliability in network connectivity applications. The series offers various configurations to support different Ethernet standards and form factors, ensuring broad compatibility across diverse hardware platforms.

Replacement Considerations

HX0068ANLT

FAQ

What is the maximum operating temperature?

The maximum operating temperature is +105°C.

Is this component suitable for PoE applications?

No, it is specified as NonPoE.
