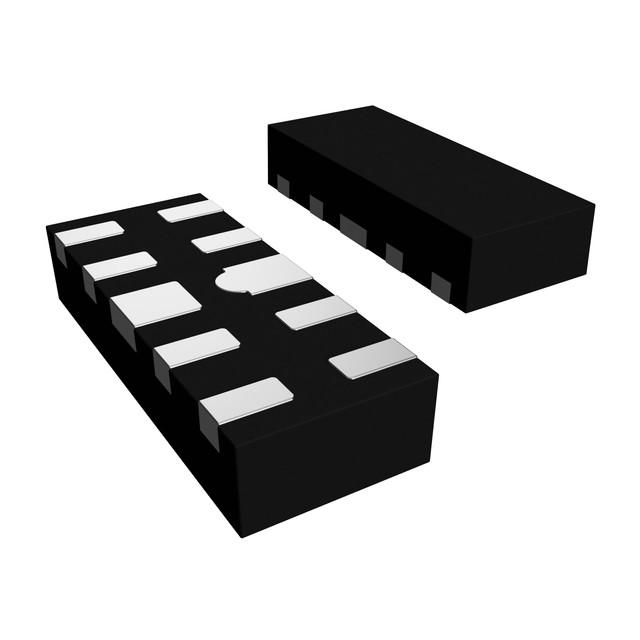

H04X643V3U

Product Detailed Parameters

• Description：TVS DIODE 3.3VWM 14VC DFN251010
• Series：-
• Mfr：HY Electronic (Cayman) Limited
• Package：Tape & Reel (TR)
• Type：Steering (Rail to Rail)
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：3.3V (Max)
• Voltage - Breakdown (Min)：4.2V
• Voltage - Clamping (Max) @ Ipp：14V
• Current - Peak Pulse (10/1000µs)：4A (8/20µs)
• Power - Peak Pulse：50W
• Power Line Protection：No
• Applications：DVI, HDMI, USB
• Capacitance @ Frequency：0.5pF @ 1MHz
• Operating Temperature：-55°C ~ 125°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：10-UFDFN
• Supplier Device Package：DFN2510-10
• Unidirectional Channels：4
• Grade：-
• Qualification：-

Download product information
