H060XHXS

Overview

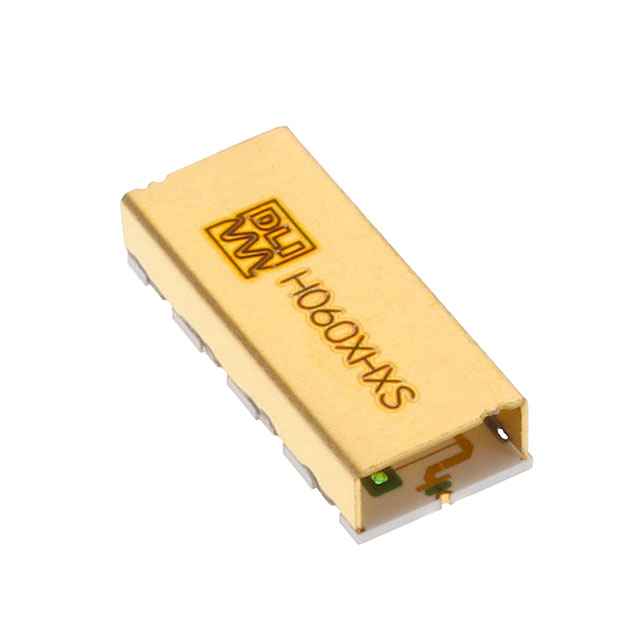

The H060XHXS is a high-pass RF filter manufactured by Knowles Dielectric Labs. It operates with a center frequency of 13.25 GHz and features a bandwidth of 2 dB. The device is designed for surface mount technology (SMD) applications, utilizing an 8-terminal package configuration. It is RoHS3 compliant and functions as a fully shielded signal conditioning component suitable for high-frequency environments.

Feature Summary

• Fully shielded construction to minimize interference
• Low insertion loss characteristics
• High permittivity ceramic design
• Surface mount compatibility

Applications

• RF signal filtering
• Signal conditioning in communication systems
• High-frequency circuit integration

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and thermal specifications before integration. Confirm that the 8-SMD package dimensions align with your PCB footprint requirements. Ensure compliance with RoHS3 standards matches your regulatory constraints. Cross-reference the 13.25 GHz center frequency against your system's operational band to ensure adequate rejection of lower frequencies.

Selection Notes

Select this component when a high-pass response centered at 13.25 GHz is required. The 2 dB bandwidth defines the transition sharpness. Consider the 8-SMD form factor for automated assembly processes. Evaluate the low-loss performance if signal integrity is critical in the passband. Verify thermal stability within the intended operating range.

Part Context

This part belongs to the high-frequency surface mount high-pass filter series from Knowles Dielectric Labs. These devices utilize high permittivity ceramics to achieve compact sizes while maintaining performance. The series is characterized by full shielding and low loss, targeting demanding RF applications where size and signal purity are paramount.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
