H1012

Overview

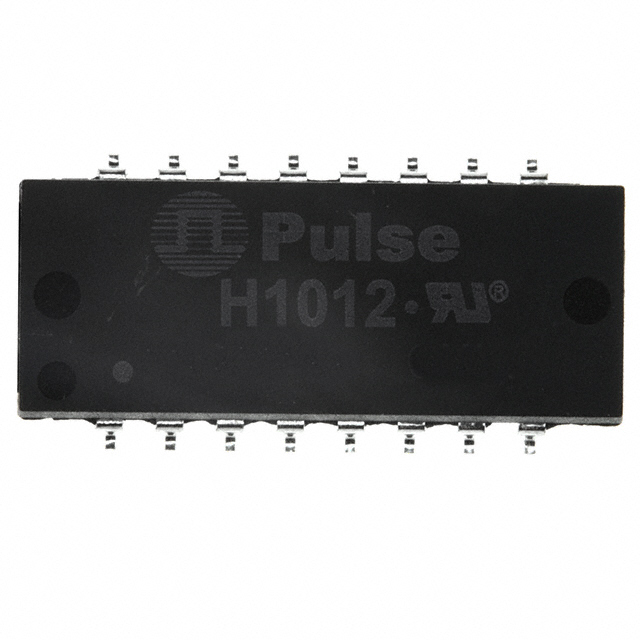

The H1012 is a LAN pulse transformer module manufactured by Pulse Electronics, designed for single-port 10/100Base-T applications. It features a 1CT:1CT turns ratio and surface mount installation. The component operates within a temperature range of 0°C to 70°C. Electrical specifications include an inductance of 350 uH and an insulation voltage of 1.5 kV. The frequency range spans from 1 MHz to 100 MHz. Physical dimensions are approximately 17.78 mm in length, 12.95 mm in width, and 9.4 mm in height. It is RoHS compliant and compatible with various transceivers.

Feature Summary

• Supports 10/100Base-T Ethernet signaling standards
• Provides galvanic isolation via high insulation voltage rating
• Designed for surface mount assembly processes
• Compatible with IEEE 802.3 specifications

Applications

• Single-port Ethernet network interface cards
• LAN hub and switch port circuits
• Industrial networking equipment requiring isolated connections
• Telecommunications infrastructure modules

Procurement Notes

Verify the specific suffix (e.g., NL, NLT) to confirm packaging type such as tape and reel or cut tape. Confirm RoHS compliance status through official datasheets. Ensure the operating temperature range meets environmental requirements. Check for moisture sensitivity classification if reflow soldering is planned. Validate compatibility with target transceiver chips before integration.

Selection Notes

Select this component for single-channel 10/100 Mbps data transmission needs. Ensure the PCB layout accommodates the specified footprint dimensions. Consider the 350 uH inductance value for impedance matching requirements. Verify that the 1.5 kV isolation voltage satisfies safety standards for the application environment. Confirm thermal management capabilities for the 0°C to 70°C operating range.

Part Context

This part belongs to the LAN transformer module family from Pulse Electronics. It serves as a critical isolation component in Ethernet physical layer circuits. Similar parts in the series may offer different port counts or pin configurations. The module integrates magnetics for signal coupling and noise suppression.

Replacement Considerations

Cross-reference with other single-port 10/100Base-T transformers from Pulse Electronics. Verify pinout compatibility and electrical parameter equivalence. Check for lead-free manufacturing consistency if required.
