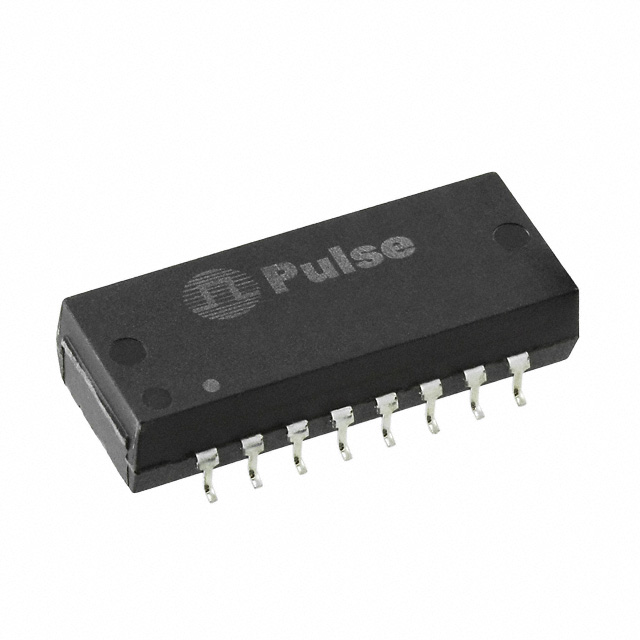

H1086NLT
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：XFRMR MODULE 1PORT 1:1 10/100
- Series：-
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Transformer Type：Isolation and Data Interface (Encapsulated)
- Inductance：-
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1:01
- Mounting Type：Surface Mount
- Size / Dimension：1.000" L x 0.390" W (25.40mm x 9.91mm)
- Height - Seated (Max)：0.245" (6.22mm)
- Operating Temperature：0°C ~ 70°C
- Grade：-
- Qualification：-
Download product information
Overview
The H1086NLT is a surface-mount LAN transformer module manufactured by Pulse Electronics, designed for 10/100Base-TX applications. It features a single-port configuration with a 1:1 turns ratio and supports Non-PoE signaling. The component operates within a temperature range of 0°C to +70°C and provides electrical isolation via a 1500Vrms insulation voltage rating. Physical dimensions are 25.40mm in length, 9.91mm in width, and 6.22mm in maximum height. It utilizes SMD/SMT termination types and is supplied in tape-and-reel packaging formats.
Feature Summary
- Provides galvanic isolation for Ethernet data lines in 10/100Base-TX networks
- Supports non-powered-over-Ethernet (Non-PoE) signal transmission
- Compact surface-mount design suitable for space-constrained PCB layouts
Applications
- Ethernet interface circuits for 10/100 Mbps network adapters
- Industrial control systems requiring isolated data links
- Consumer electronics with integrated networking capabilities
Procurement Notes
Verify RoHS compliance status and specific datasheet revisions prior to ordering. Confirm that the selected packaging option aligns with automated assembly requirements. Ensure thermal management strategies accommodate the specified operating temperature range during final product integration.
Selection Notes
Select this component when designing for 10/100Base-TX standards without Power over Ethernet requirements. Consider the physical footprint constraints relative to available board space. Verify compatibility with existing magnetics specifications regarding common mode choke characteristics and impedance matching for the target network speed.
Part Context
This part belongs to Pulse Electronics' portfolio of LAN transformers, specifically engineered for high-volume consumer and industrial networking equipment. It serves as a critical interface component between the PHY chip and the external RJ45 connector, ensuring signal integrity and noise immunity in twisted-pair copper cabling environments.
Replacement Considerations
No direct substitute part numbers are publicly confirmed in the provided documentation. Designers should consult official cross-reference guides or contact the manufacturer for qualified alternatives if supply chain constraints arise.
