Product Detailed Parameters
- Description：XFRMR MAGNTC 1PORT 1.25:1 10/100
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Transformer Type：Isolation and Data Interface (Encapsulated)
- Inductance：-
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1.25:1 Transmitter, 1:1 Receiver
- Mounting Type：Surface Mount
- Size / Dimension：0.500" L x 0.280" W (12.70mm x 7.11mm)
- Height - Seated (Max)：0.245" (6.22mm)
- Operating Temperature：0°C ~ 70°C
- Grade：-
- Qualification：-
Download product information
Overview

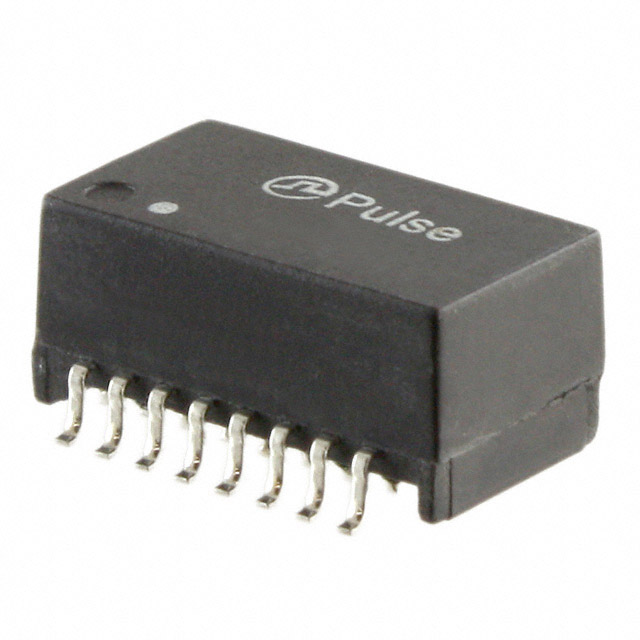

The H1101NL is a single-port surface-mount magnetic transformer manufactured by Pulse Electronics, designed for 10/100Base-T applications. It features an unshielded module construction with SMD/SMT termination. The component operates within a temperature range of 0°C to +70°C and measures 12.70 mm in length, 7.11 mm in width, and 6.22 mm in maximum height. It has a primary-to-secondary turns ratio of 1.25:1 for the transmitter and 1:1 for the receiver.
Feature Summary
- Provides galvanic isolation and signal integrity for data interface networks
- Supports integrated magnetics for compact single-port circuit designs
- Engineered for surface-mount assembly on printed circuit boards
Applications
- 10/100Base-T Ethernet network interfaces
- Single-port LAN connectivity modules
- Data communication equipment requiring isolated signal transmission
Procurement Notes
Verify current availability status as this component is listed as obsolete or discontinued in official distributor records. Confirm end-of-life timelines and last-time-buy windows with authorized suppliers before committing to procurement plans. Ensure alternative sourcing strategies are established due to potential supply chain constraints associated with discontinued part numbers.
Selection Notes
Select this component specifically for legacy 10/100Base-T single-port implementations requiring specific impedance matching characteristics. Evaluate physical footprint compatibility with existing PCB layouts due to its defined surface-mount dimensions. Consider obsolescence status when designing new products, prioritizing future-proof alternatives unless maintaining backward compatibility with existing hardware architectures.
Part Context
This part belongs to Pulse Electronics' portfolio of audio and signal transformers, specifically categorized under LAN transformers and pulse transformers. It serves as a passive magnetic component facilitating electrical isolation between network transceivers and physical media connectors. The product line focuses on providing reliable signal coupling for standard Ethernet protocols in embedded systems.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Due to the discontinued status, direct pin-compatible replacements may require engineering validation. Consult manufacturer technical support for recommended cross-reference components suitable for 10/100Base-T single-port applications.
