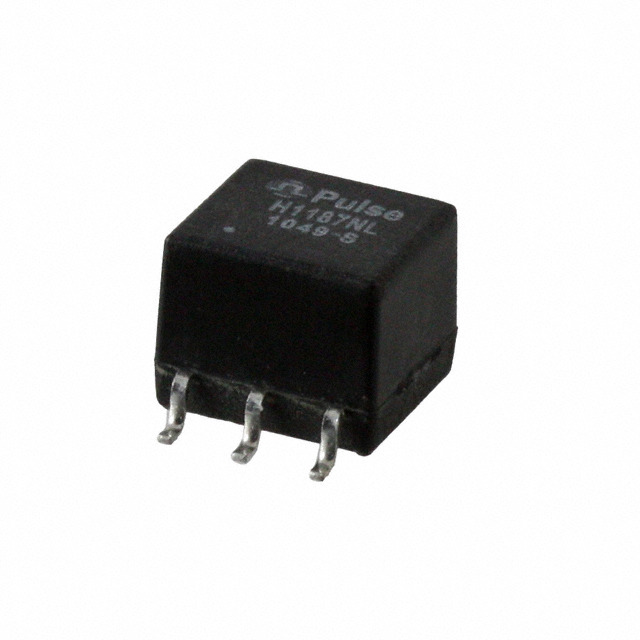

H1187NL
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：XFRMR MAGNT MOD 1PORT POE 10/100
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Transformer Type：Isolation and Data Interface (Encapsulated)
- Inductance：-
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：-
- Mounting Type：Surface Mount
- Size / Dimension：0.300" L x 0.275" W (7.62mm x 7.00mm)
- Height - Seated (Max)：0.260" (6.60mm)
- Operating Temperature：0°C ~ 70°C
- Grade：-
- Qualification：-
Download product information
Overview
The H1187NL is a single-channel LAN transformer module manufactured by Pulse Electronics, designed for 10/100BASE-TX Ethernet applications. It supports Power over Ethernet (PoE) functionality and features surface-mount device (SMD) termination. The component operates within a frequency range of 1 MHz to 100 MHz and provides an isolation voltage of 1.5 kV. Key electrical specifications include an inductance of 350 uH and a primary DC resistance of 1.5 Ohms. The physical dimensions are 7.62 mm in length, 6.99 mm in width, and 6.35 mm in height. It functions reliably across a temperature range of -40°C to +85°C.
Feature Summary
- Supports 10/100BASE-TX data transmission standards
- Integrated Power over Ethernet (PoE) capability
- Surface-mount construction for automated assembly
Applications
- 10/100BASE-TX Ethernet network interfaces
- VoIP telephony equipment
- Network switches and routers
Procurement Notes
Verify the specific datasheet version and RoHS compliance status prior to ordering, as manufacturer documentation may undergo revisions. Confirm that the SMD package dimensions align with the target PCB footprint design. Ensure that the thermal management strategy accommodates the specified operating temperature range during final product integration.
Selection Notes
Select this component when designing circuits requiring integrated magnetics for 10/100 Mbps Ethernet connections with PoE support. The single-port configuration simplifies layout compared to multi-port alternatives. Consider the unshielded nature of the module regarding electromagnetic interference requirements in the final enclosure design.
Part Context
This part belongs to the HX series of LAN transformers from Pulse Electronics. It is categorized under audio and signal transformers, specifically tailored for datacom applications. The module encapsulates the necessary magnetic components to facilitate signal coupling and isolation in standard twisted-pair copper cabling systems.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing circuit designs before considering alternative manufacturers or models.
