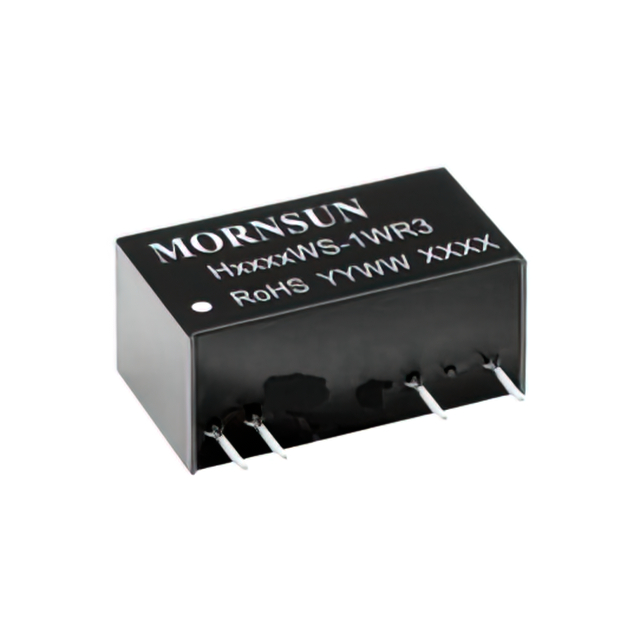

H1205WS-1WR3

H1205WS-1WR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is ISOLATED MODULE DC DC CONVERTER1. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for H1205WS-1WR3

• Description：ISOLATED MODULE DC DC CONVERTER1
• Series：H_WS-1WR3 (1W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA
• Power (Watts)：1 W
• Voltage - Isolation：6 kV
• Applications：ITE (Commercial), Medical
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：79%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.39" W x 0.94" H (19.5mm x 9.8mm x 24.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：60601-1; 62368-1

DC DC Converters datasheet and documents for H1205WS-1WR3
