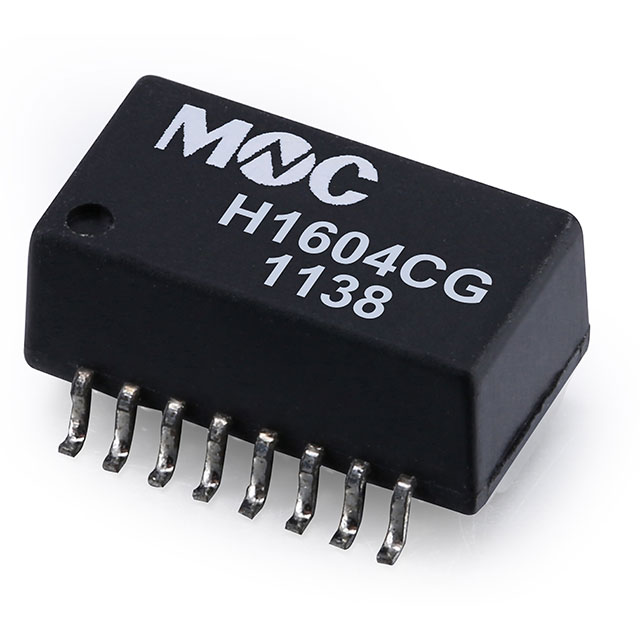

H1604CG

$2.09

Description：SINGLE LAN XFMR 10/100 BASE-T
Series：-
Mfr：Mentech Technology USA Inc.
Package：Tape & Reel (TR)

SKU:92eb8d0bf46d Category: Pulse Transformers Brand: Mentech Technology USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SINGLE LAN XFMR 10/100 BASE-T
Series：-
Mfr：Mentech Technology USA Inc.
Package：Tape & Reel (TR)
Transformer Type：LAN 10/100 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.500" L x 0.280" W (12.70mm x 7.10mm)
Height - Seated (Max)：0.252" (6.40mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

H1604CG

Overview

The H1604CG is a single-port surface mount pulse transformer designed for 10/100 BASE-T Ethernet applications. It features an inductance of 350µH and utilizes a 1CT:1CT configuration. The component supports 16-pin SMT mounting and does not include Power over Ethernet (PoE) capabilities. It operates within a temperature range of 0°C to +70°C, ensuring reliability in standard environmental conditions for network connectivity.

Feature Summary

Designed specifically for 10/100 BASE-T single-port Ethernet connectivity
Utilizes surface mount technology for automated assembly integration
Provides galvanic isolation via pulse transformer architecture

Applications

Ethernet network interface cards
Network switches and hubs
Industrial communication modules

Procurement Notes

Verify the specific datasheet version before procurement, as manufacturer specifications may undergo revisions. Confirm that the application design does not require Power over Ethernet functionality, as this component lacks PoE support. Ensure the PCB layout accommodates the 16-pin surface mount package dimensions and thermal requirements specified in the official documentation.

Selection Notes

Select this component when a non-PoE solution is required for 10/100 Mbps Ethernet links. The choice depends on the need for a single-port magnetic isolation device with standard operating temperatures. Consider the 16-pin footprint compatibility during the mechanical design phase to ensure proper board space allocation and soldering process alignment.

Part Context

This part belongs to Mentech's line of LAN magnetics, specifically engineered for high-volume manufacturing and ODM/JDM services. The H1604CG serves as a critical passive component for signal integrity in copper-based networking hardware, distinguishing itself from higher-speed or PoE-enabled variants through its specific electrical parameters and port configuration.
