H1605DG

$1.46

Description：SINGLE LAN XFMR 10/100 BASE-T
Series：-
Mfr：Mentech Technology USA Inc.
Package：Tube

SKU:eb6c268a0bcc Category: Pulse Transformers Brand: Mentech Technology USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SINGLE LAN XFMR 10/100 BASE-T
Series：-
Mfr：Mentech Technology USA Inc.
Package：Tube
Transformer Type：LAN 10/100 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Through Hole
Size / Dimension：0.819" L x 0.402" W (20.80mm x 10.20mm)
Height - Seated (Max)：0.280" (7.10mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

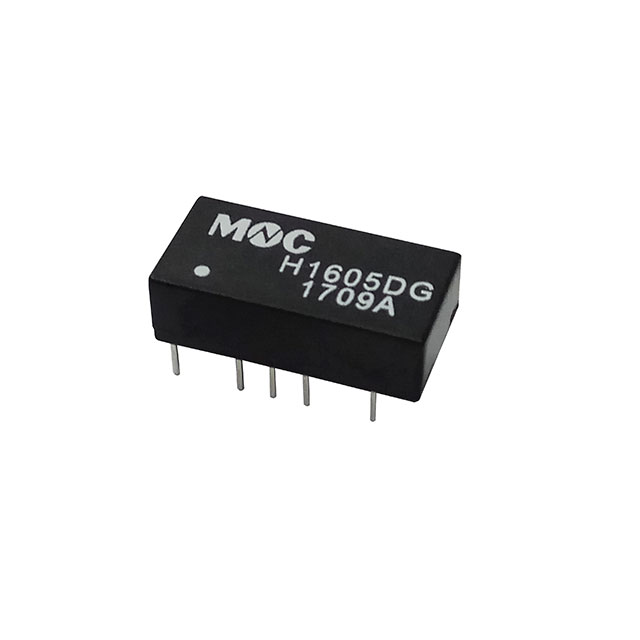

H1605DG

Overview

The H1605DG is a LAN pulse transformer manufactured by Mentech Technology USA Inc., designed for Ethernet applications. It supports 10/100 Base-T networks and utilizes through-hole mounting. The component features an inductance of 350µH to isolate digital signals. Physical dimensions are 20.80mm x 10.20mm x 7.90mm, with a weight of 1.50g. It is currently active in the lifecycle.

Feature Summary

Designed for LAN 10/100 Base-T network applications
Provides digital signal isolation via 350µH inductance
Supports through-hole mounting technology

Applications

Ethernet network interface circuits
LAN data transmission systems
Digital signal isolation modules

Procurement Notes

Verify the manufacturer source is Mentech Technology USA Inc. or authorized distributor Dongguan Mentech Optical & Magnetic Co., Ltd. Confirm the part number H1605DG matches the datasheet specifications including 350µH inductance and through-hole package. Ensure the product status is listed as Active. Check for any specific ordering suffixes that may alter functionality, though none are documented for this base model.

Selection Notes

Select the H1605DG for 10/100 Base-T Ethernet designs requiring through-hole integration. The 350µH inductance value is critical for proper signal isolation in these networks. Consider the physical footprint of 20.80mm x 10.20mm for PCB layout compatibility. This component is suitable for high-volume manufacturing environments supported by Mentech's ODM and JDM capabilities.

Part Context

Mentech Technology USA Inc. provides ODM, JDM, and EMS services, specializing in magnetic components. The company focuses on R&D and production of transformers and inductors. The H1605DG is part of their LAN transformer portfolio, manufactured in China. Mentech serves as a professional transformer and inductor manufacturer, supporting electronic component supply chains.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official distributors for potential equivalents if this specific model is unavailable.
