H2006ANL

Overview

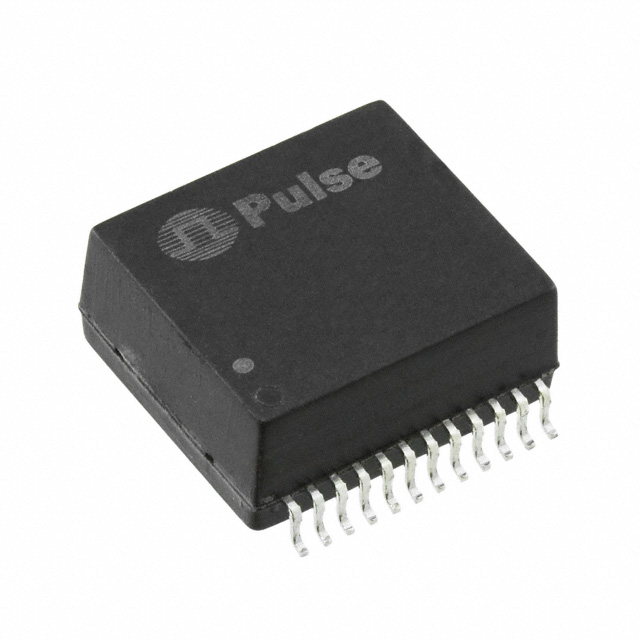

The H2006ANL is a surface-mount LAN transformer module from Pulse Electronics, designed for 100Base-TX applications. It supports Power over Ethernet (PoE) functionality and features two ports. The component operates within a frequency range of 100 kHz to 100 MHz and provides an insulation voltage of 1.5 kV. It has a single channel configuration with an inductance of 350 uH. Physical dimensions are 12.7 mm in length, 9.652 mm in width, and 2.083 mm in height. The unit weight is 450 mg. Operating temperatures range from -40 C to +85 C.

Feature Summary

• Integrates PoE capabilities for simultaneous data and power transmission
• Supports 100Base-TX network standards
• Surface-mount design for automated assembly

Applications

• 10/100BASE-TX Ethernet interfaces
• Power over Ethernet powered devices
• Network interface card designs

Procurement Notes

Verify the specific datasheet version for the H2006ANL to confirm RoHS compliance status and detailed electrical tolerances. Ensure that the selected supplier provides authentic components from Pulse Electronics. Cross-reference the package type and pinout against your PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when designing 100Base-TX systems requiring integrated PoE support. Consider the SMD package size constraints and thermal management needs for the operating temperature range. Verify compatibility with the target network controller's signal integrity requirements and impedance matching specifications.

Part Context

This part belongs to the HX series of audio and signal transformers manufactured by Pulse Electronics. It falls under the LAN Transformers subcategory, specifically engineered for high-reliability Ethernet connectivity solutions. The module integrates magnetic components into a compact surface-mount form factor suitable for modern electronic assemblies.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
